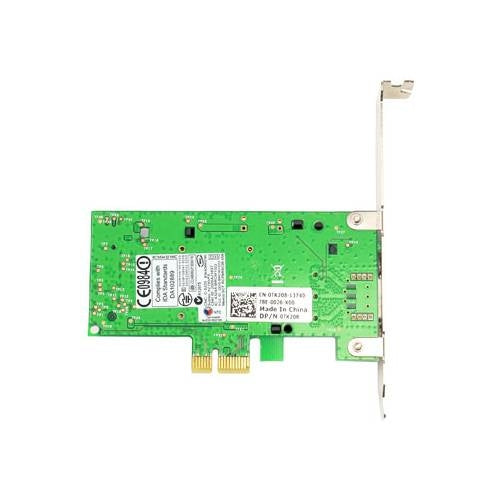

DELL Wireless 1520 (802.11 a/b/g/n), PCIe Internal WLAN 300 Mbit/s
Product overview & specifications
EMEA Dell Wireless 1520 (802.11 a/b/g/n) PCIe Card for OptiPlex 380 / 580 / 780 / 960 / 980 / 390 / 790 / 990 MT
The Dell Wireless 1520 (11agn) WLAN Card introduces a dual-band low-cost card supporting 802.11a/g/n networks. The Dell Wireless 1520 is based on the Dell Wireless 1510 card with a few improvements and fixes. It works in Windows® XP, Windows Vista™ and Windows 7.
Highlights:
- IEEE 802.11a operation (5-GHz frequency band)
- IEEE 802.11g operation (2.4-GHz frequency band)
- IEEE 802.11n operation (2.4-GHz frequency band and 5-GHz frequency band)
- Network data rate of up to 130 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels
- Unscheduled Automatic Power Save Delivery support
Highlights:
- IEEE 802.11a operation (5-GHz frequency band)
- IEEE 802.11g operation (2.4-GHz frequency band)
- IEEE 802.11n operation (2.4-GHz frequency band and 5-GHz frequency band)
- Network data rate of up to 130 Mbps for 20 MHz channels and 300 Mbps for 40 MHz channels
- Unscheduled Automatic Power Save Delivery support
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Interface | WLAN |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Bandwidth | |
| Maximum data transfer rate | 300 Mbit/s |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 54,125,150,300 Mbit/s |
| Antenna | |
| Frequency range | 2.4 - 5 GHz |
| Network | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Wi-Fi | Yes |
| Data link protocols | IPv6 |
| Ethernet LAN | No |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rates supported | 54,125,150,300 Mbit/s |
| Frequency range | 2.4 - 5 GHz |
| Maximum data transfer rate | 300 Mbit/s |
| Design | |
| Internal | Yes |
| Component for | PC |
| Software | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Indication | |
| Power LED | Yes |
| Link/Act LED | Yes |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Protocols | |
| Data link protocols | IPv6 |
| Performance | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Technical details | |
| Compliance certificates | RoHS |
| Other features | |
| Power LED | Yes |
| Link/Act LED | Yes |
