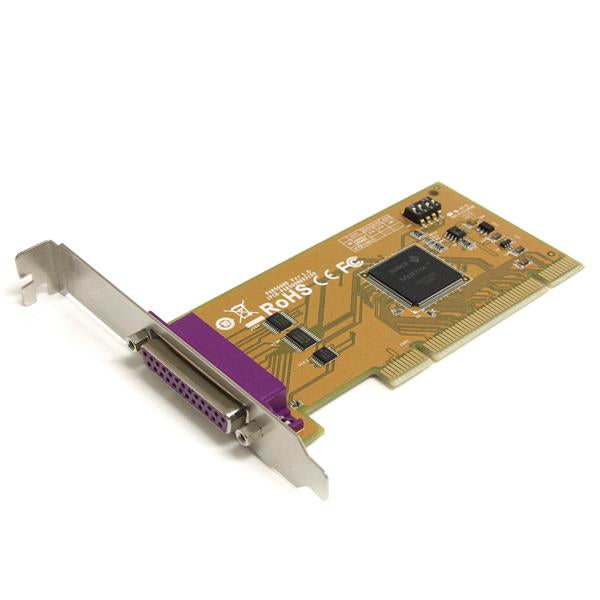

StarTech.com 1 Port PCI Parallel Adapter Card with Re-mappable Address
Product overview & specifications
StarTech.com 1 Port PCI Parallel Adapter Card with Re-mappable Address - 1 Port PCI Parallel Card - 1 Port IEEE 1284 Card
Add a fully featured, re-mappable I/O parallel port to your PC using a PCI expansion slot
The PCI1PM Re-mappable 1-Port PCI Parallel Card adds a fully-featured, I/O mapped IEEE 1284 parallel port to your system using a PCI expansion slot.
Saving time and money in costly upgrades of legacy hardware, this re-mappable parallel card can be installed and configured using legacy memory ranges (278, 378, and 3BC legacy ISA addresses) under DOS and Windows operating systems, for compatibility with legacy devices such as security dongles that require a specific memory I/O range for operation.
The card also supports standard installations, with plug-and-play WHQL certified drivers for Windows, as well as support for DOS and Linux.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Re-mappable memory I/O ranges provide a simple, compatible solution for connecting legacy parallel devices and dongles
- Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
- WHQL certified drivers provide a hassle-free, plug-and-play installation on Windows systems
The PCI1PM Re-mappable 1-Port PCI Parallel Card adds a fully-featured, I/O mapped IEEE 1284 parallel port to your system using a PCI expansion slot.
Saving time and money in costly upgrades of legacy hardware, this re-mappable parallel card can be installed and configured using legacy memory ranges (278, 378, and 3BC legacy ISA addresses) under DOS and Windows operating systems, for compatibility with legacy devices such as security dongles that require a specific memory I/O range for operation.
The card also supports standard installations, with plug-and-play WHQL certified drivers for Windows, as well as support for DOS and Linux.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Re-mappable memory I/O ranges provide a simple, compatible solution for connecting legacy parallel devices and dongles
- Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
- WHQL certified drivers provide a hassle-free, plug-and-play installation on Windows systems
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Parallel |
| Parallel ports quantity | 1 |
| Host interface | PCI-X |
| Technical details | |
| Plug and Play | Yes |
| Chipset | Sunix UL7512EQ |
| Purpose | PC |
| FIFO (First In, First Out) | 16 B |
| Compliance certificates | RoHS |
| Network | |
| Data transfer rate | 1.8 Mbit/s |
| Performance | |
| Plug and Play | Yes |
| Chipset | Sunix UL7512EQ |
| Purpose | PC |
| FIFO (First In, First Out) | 16 B |
| Product colour | Yellow |
| Certificates | |
| Certification | CE, FCC |
| Colour | |
| Product colour | Yellow |
| Design | |
| Purpose | PC |
| Internal | Yes |
| Product colour | Yellow |
| Certification | CE, FCC |
| Features | |
| Plug and Play | Yes |
| Chipset | Sunix UL7512EQ |
| FIFO (First In, First Out) | 16 B |
| Power | |
| Power consumption (typical) | 0.033 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2008 R2 |
| Other operating systems supported | Dos |
| Weight & dimensions | |
| Width | 61 mm |
| Depth | 121 mm |
| Height | 13 mm |
| Weight | 75 g |
| Package width | 147 mm |
| Package depth | 203 mm |
| Package height | 41 mm |
| Package weight | 180 g |
| Packaging data | |
| Package width | 147 mm |
| Package depth | 203 mm |
| Package height | 41 mm |
| Package weight | 180 g |
| User guide | Yes |
| Other features | |
| Data transfer rate | 1.8 Mbit/s |
| Ports quantity | 1 |
| Connectivity technology | Wired |
| Quantity outer carton | 60 pc(s) |
| Power requirements | 3.3/5V DC |
| Compliance industry standards | BPP/ECP/EPP/SPP, IEEE-128 |
| Chipset | Sunix UL7512EQ |
| Packaging content | |
| User guide | Yes |
