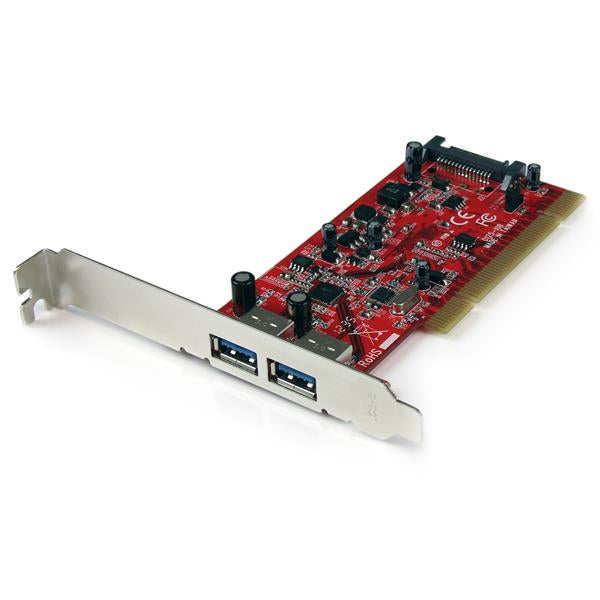

StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power
Product overview & specifications
StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - Dual Port PCI USB 3 Controller Card
Add 2 SuperSpeed USB 3.0 ports to a computer through a PCI slot
The PCIUSB3S22 2-Port PCI to USB 3.0 Card enables you to connect USB 3.0 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.0 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.0 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.0 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.0 card is backed by lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Faster transfer rates when used with USB 3.0 peripherals than a USB 2.0 host connection would permit (up to 1.3 Gbps, PCI bus limit)
- Suited for installation in Small Form Factor cases as well as in full profile systems
- Can support bus-powered USB devices
The PCIUSB3S22 2-Port PCI to USB 3.0 Card enables you to connect USB 3.0 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.0 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.0 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.0 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.0 card is backed by lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Faster transfer rates when used with USB 3.0 peripherals than a USB 2.0 host connection would permit (up to 1.3 Gbps, PCI bus limit)
- Suited for installation in Small Form Factor cases as well as in full profile systems
- Can support bus-powered USB devices
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal SATA ports quantity | 1 |
| Host interface | PCI |
| Technical details | |
| Chipset | NEC uPD720202 |
| Compliance certificates | RoHS |
| Performance | |
| Chipset | NEC uPD720202 |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Red |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Features | |
| Chipset | NEC uPD720202 |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| System requirements | |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Weight & dimensions | |
| Width | 123 mm |
| Depth | 56 mm |
| Height | 10 mm |
| Weight | 60 g |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 146 g |
| Packaging data | |
| Package width | 144 mm |
| Package depth | 175 mm |
| Package height | 32 mm |
| Package weight | 146 g |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | NEC uPD720202 |
