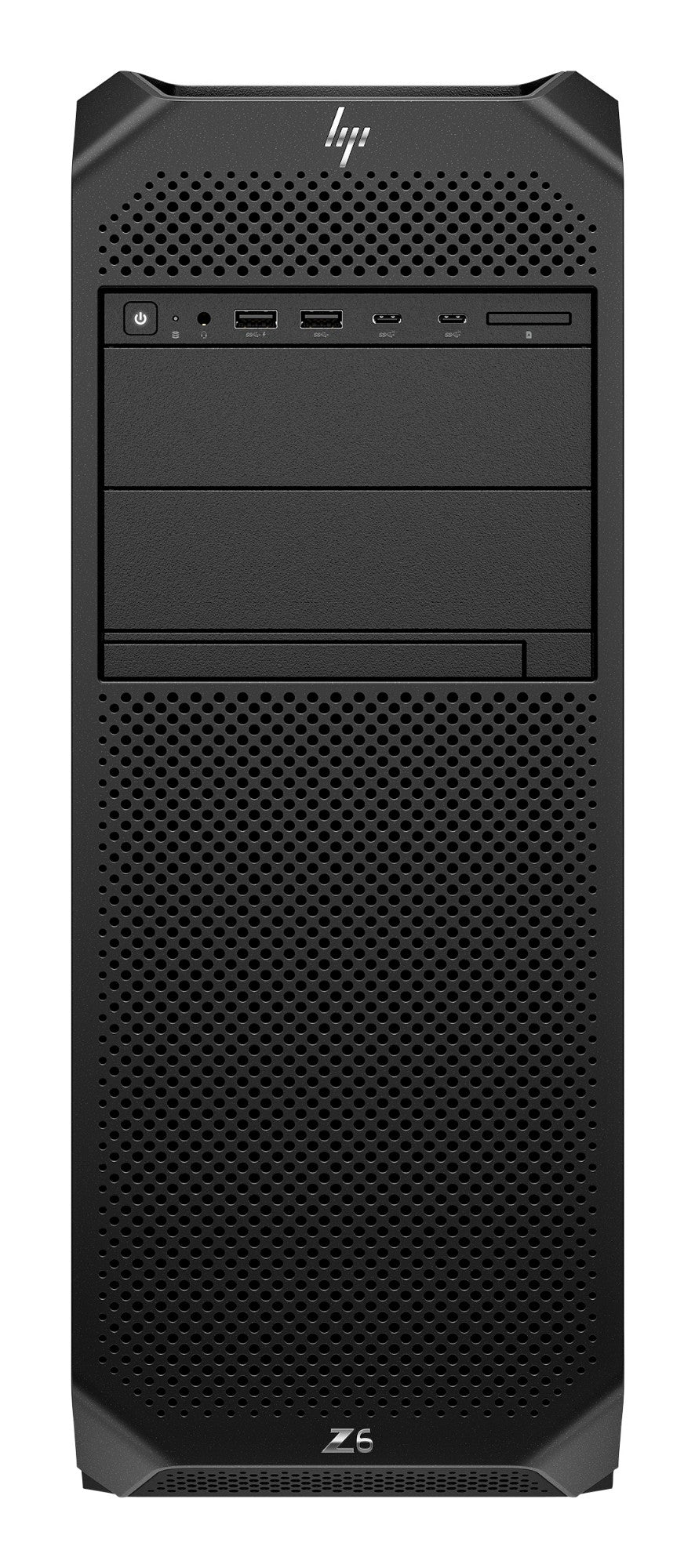

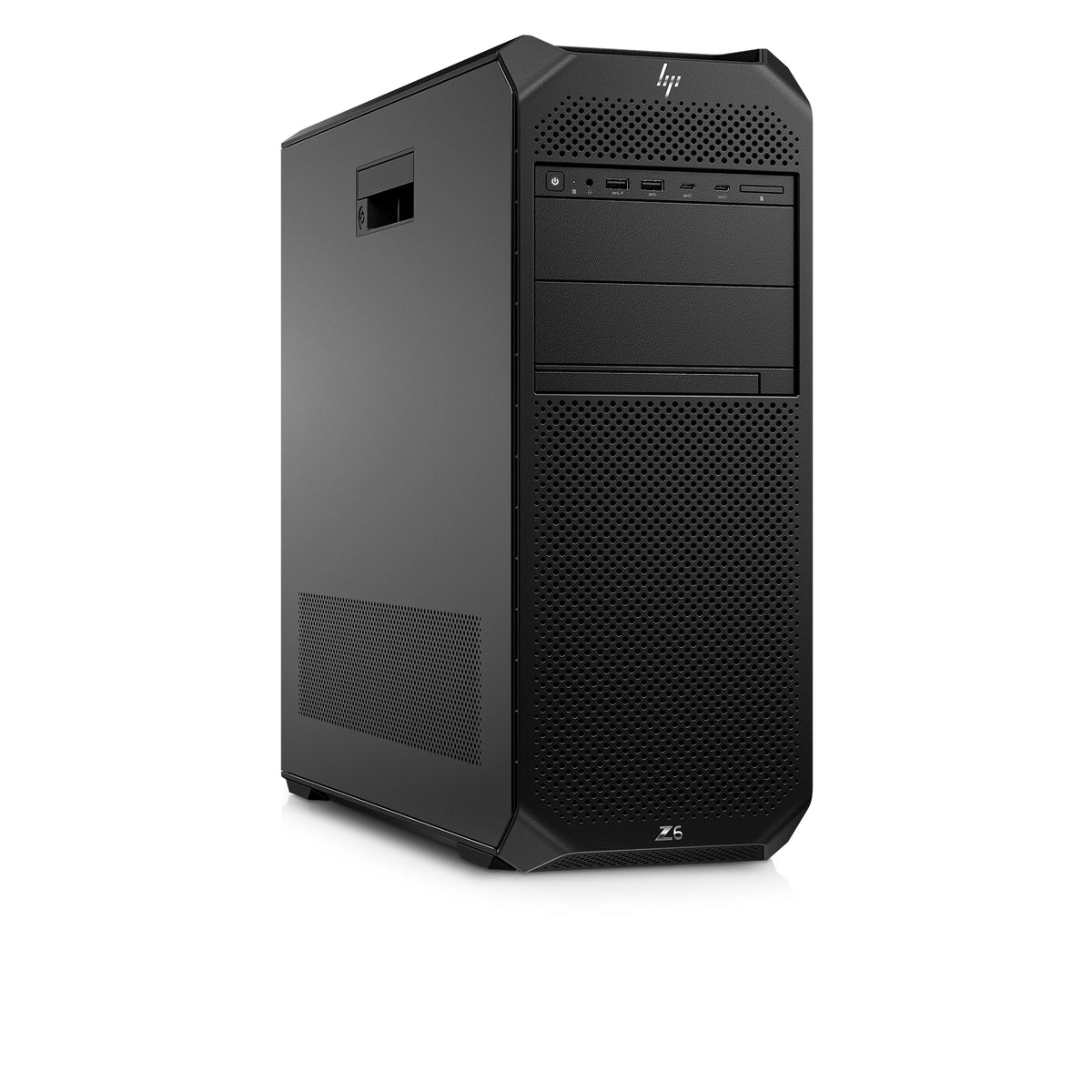

HP Z6 G5 Intel Xeon w5 w5-3435X 64 GB DDR5-SDRAM 2 TB SSD Windows 11 Pro Tower Workstation AI Workstation Black
Product overview & specifications
Z6 G5 Tower Workstation, Windows 11 Pro, Intel Xeon w5, 64GB RAM, 2TB SSD, AI Workstation
Unleash extreme graphics performance
Accelerate AI and graphics-heavy projects—from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.
Accelerate AI and graphics-heavy projects—from data visualization and machine learning to real-time ray tracing and advanced visual effects. With powerful single socket technology and up to 3 high-end GPUs, the Z6 AI workstation is ideal for demanding workflows, with plenty of room to expand.
| Processor | |
|---|---|
| Processor cache type | L3 |
| Processor cache | 45 MB |
| Processor model | w5-3435X |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 32 |
| Processor cores | 16 |
| Processor family | Intel Xeon w5 |
| Memory | |
| Non-ECC | Yes |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 32 GB |
| Internal memory | 64 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 4800 MHz |
| Memory module type | DIMM |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| SSD interface | PCI Express |
| SSD capacity | 2 TB |
| Number of SSDs installed | 1 |
| Total storage capacity | 2 TB |
| SSD memory type | TLC |
| SSD form factor | M.2 |
| Total SSDs capacity | 2 TB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Performance | |
| Market positioning | Performance |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel W790 |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio chip | Realtek ALC3205-CG |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| Microphone in | Yes |
| HDMI ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB4 Gen 2x2 ports quantity | 2 |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of 3.5" bays | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 1450 W |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 3.5" bays | 4 |
| Cable lock slot | Yes |
| Motherboard chipset | Intel W790 |
| UNSPSC-code | 43211515 |
| Memory module type | DIMM |
| Sustainable technologies and materials | At least 40% post-consumer recycled plastic; At least 25% ITE-derived closed loop plastic; Ocean-bound plastic in system fan; At least 10% recycled metal; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Low halogen; Bulk packaging available; External power supply 90% efficiency |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_5990438_en-US-1.pdf |
| HP GTIN (EAN/UPC) | 197498283012 |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 3.5" bays | 4 |
| Cable lock slot | Yes |
| Country of origin | Czech Republic |
| Introduction year | 2023 |
| Software | |
| Pre-installed software | HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
| Operating system installed | Windows 11 Pro |
| Display | |
| Display included | No |
| Processor special features | |
| Intel® Turbo Boost Technology | Yes |
| Brand-specific features | |
| HP Support Assistant | Yes |
| HP Security tools | Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools | HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP segment | Business |
| HP Artificial Intelligence | AI Workstation |
| HP GTIN (EAN/UPC) | 197498283012 |
| Audio | |
| Audio chip | Realtek ALC3205-CG |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 1040.394 |
| Sustainable technologies and materials | At least 40% post-consumer recycled plastic; At least 25% ITE-derived closed loop plastic; Ocean-bound plastic in system fan; At least 10% recycled metal; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Low halogen; Bulk packaging available; External power supply 90% efficiency |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, EPEAT, TCO |
| Weight & dimensions | |
| Package width | 313 mm |
| Package depth | 610 mm |
| Package height | 593 mm |
| Width | 168.9 mm |
| Depth | 464.8 mm |
| Height | 168.9 mm |
| Package weight | 17.2 kg |
| Weight | 12.8 kg |
| Packaging data | |
| Package width | 313 mm |
| Package depth | 610 mm |
| Package height | 593 mm |
| Package weight | 17.2 kg |
| Packaging content | |
| Numeric keypad | No |
| Keyboard included | Yes |
| Input device model | HP Wired 320M Mouse |
| Display included | No |
| Keyboard connectivity | Wired |
| Certificates | |
| Low halogen | Yes |
| Keyboard | |
| Keyboard type | USB |
| Keyboard connectivity | Wired |
| Supplier features | |
| Manufacturer warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Support service included | HP 3 year Onsite Care Workstation Hardware Support. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE and https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 1040.394 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 537.084 |
| Carbon emissions, manufacturing (kg of CO2e) | 496.456 |
| Carbon emissions, logistics (kg of CO2e) | 3.952 |
| Carbon emissions, end-of-life (kg of CO2e) | 2.902 |
| Features | |
| Country of origin | Czech Republic |
| Other features | |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| UNSPSC-code | 43211515 |
| Memory module type | DIMM |
| Keyboard type | USB |
| Country of origin | Czech Republic |
| Manufacturer warranty | 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Support service included | HP 3 year Onsite Care Workstation Hardware Support. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE and https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf |
HP Z6 G5 Intel Xeon w5 w5-3435X 64 GB DDR5-SDRAM 2 TB SSD Windows 11 Pro Tower Workstation AI Workstation Black
£6,026.65
