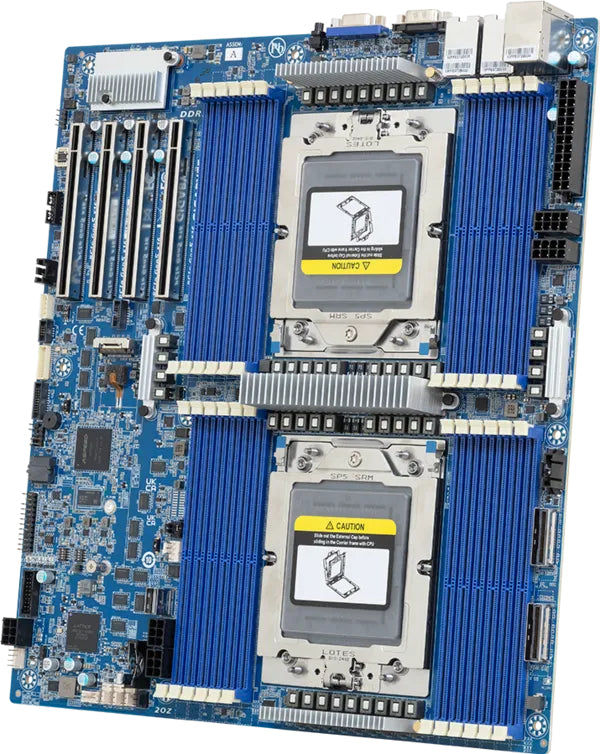

GIGABYTE MZ73-LM2 (Rev. 3.x) Socket SP5 Extended ATX
Product overview & specifications
Socket SP5, 24 x DDR5-SDRAM, LAN, 2 x RJ-45, 1 x M.2(M), Extended ATX
New AMD EPYC™ Family of Processors - Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SlimSAS |
| USB 2.0 connectors | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 0 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Technical details | |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Performance | |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD EPYC 9004, AMD EPYC 9005 |
| Processor socket | Socket SP5 |
| Memory | |
| Number of memory slots | 24 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dodeca-channel |
| Supported memory clock speeds | 4800 MHz |
| Storage controllers | |
| Supported storage drive interfaces | M.2, SlimSAS |
| Number of storage drives supported | 4 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI-D ports quantity | 0 |
| COM ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Broadcom BCM57416 |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Motherboard form factor | Extended ATX |
| Component for | Server |
| Product colour | Blue |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 4 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| Power | |
| Power source type | ATX |
| Operational conditions | |
| Storage temperature (T-T) | 10 - 40 °C |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating relative humidity (H-H) | 8 - 80% |
| Packaging data | |
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
| Weight & dimensions | |
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
| Width | 304.8 mm |
| Depth | 335.2 mm |
| Other features | |
| Package width | 409 mm |
| Package depth | 355 mm |
| Package height | 78 mm |
