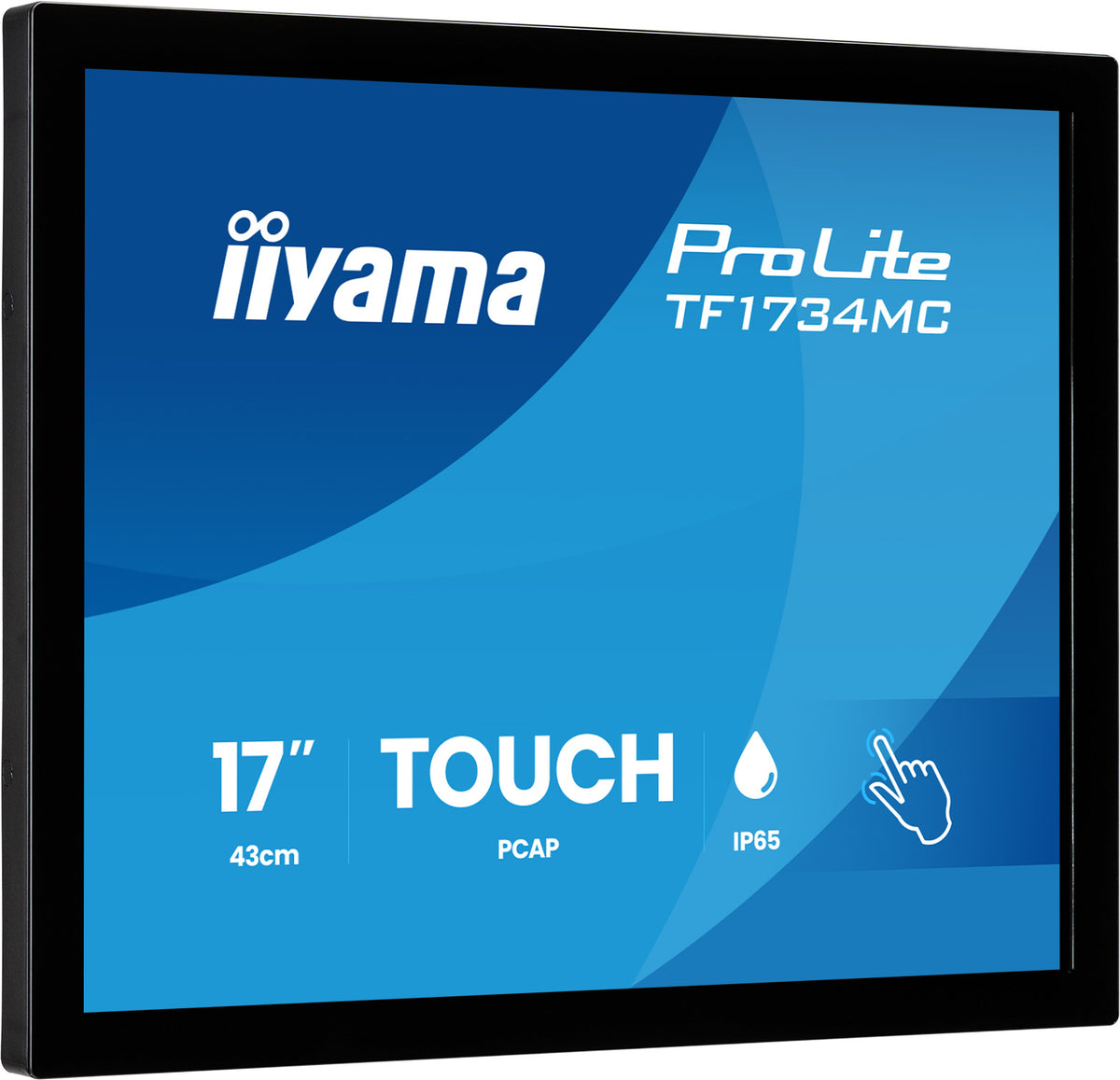

iiyama ProLite TF1734MC-B8X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black
Product overview & specifications
Touch 17" TN, 1280x1024 px, 75 Hz, 5:4, 350 cd/m², 1000:1, VGA, HDMI, DisplayPort
17” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration
The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.
For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.
For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Performance | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Palm rejection | Yes |
| Display | |
| Display brightness (typical) | 300 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 5:4 |
| Maximum refresh rate | 75 Hz |
| HD type | SXGA |
| Display technology | LCD |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display resolution | 1280 x 1024 pixels |
| Response time | 5 ms |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Panel type | TN |
| Display diagonal (metric) | 43 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 300 cd/m² |
| Positional accuracy | 2 mm |
| Management features | |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | External |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 13 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| International Protection (IP) code | IP65 |
| Glass thickness | 3 mm |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | No |
| Headphone out | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| Technical details | |
| Cable lock slot | No |
| HDMI | Yes |
| Product colour | Black |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Packaging content | AC adapter |
| Brightness | 300 cd/m² |
| Power supply type | External |
| Active display area (W x H) | 338 x 270 mm |
| Weight (with stand) | 3.6 kg |
| Touch method | stylus, finger, glove (latex) |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | No |
| Panel mounting interface | 100 x 100 mm |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Height adjustment | No |
| Weight & dimensions | |
| Width (with stand) | 369 mm |
| Depth (with stand) | 47.5 mm |
| Height (with stand) | 307 mm |
| Weight (with stand) | 3.6 kg |
| Package width | 387 mm |
| Package depth | 455 mm |
| Package height | 145 mm |
| Package weight | 5.2 kg |
| Width | 369 mm |
| Weight | 3.6 kg |
| Height | 307 mm |
| Depth | 47.5 mm |
| Packaging data | |
| Package width | 387 mm |
| Package depth | 455 mm |
| Package height | 145 mm |
| Package weight | 5.2 kg |
| USB cable length | 1.8 m |
| Power cable length | 1.8 m |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Packaging content | |
| Power cable length | 1.8 m |
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| AC adapter included | Yes |
| USB cable length | 1.8 m |
| Sustainability | |
| Sustainability certificates | ErP |
| Other features | |
| Packaging content | AC adapter |
| Brightness | 300 cd/m² |
| Active display area (W x H) | 338 x 270 mm |
| AC adapter included | Yes |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| International Protection (IP) code | IP65 |
| Width | 369 mm |
| Weight | 3.6 kg |
| Height | 307 mm |
| Depth | 47.5 mm |
| Positional accuracy | 2 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| Quick start guide | Yes |
| HDMI | Yes |
| Power supply type | External |
| Power cable length | 1.8 m |
| Display brightness (peak) | 350 cd/m² |
| Touchscreen type | Table |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 10 |
| Front bezel colour | Black |
