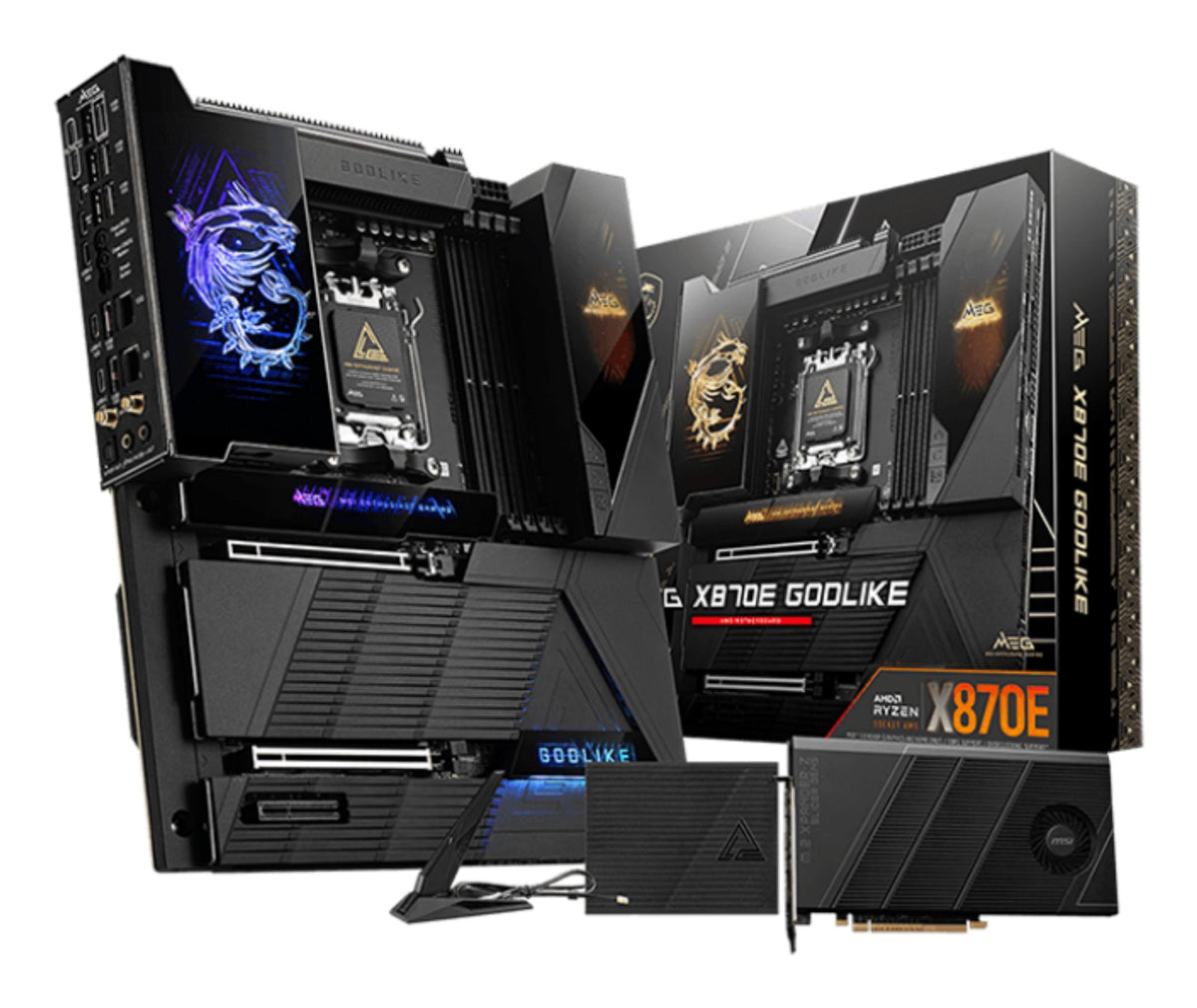

MSI MEG X870E GODLIKE motherboard AMD X870E Socket AM5 Extended ATX
Product overview & specifications
AMD X870E, 4x DDR5, 9000 (OC) MT/s, 4x SATA, 2x Type-C DisplayPort, Wi-Fi 7, E-ATX
Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Total number of SATA connectors | 4 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| mSATA ports quantity | 0 |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Total number of SATA connectors | 4 |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5600 MHz |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 9000 MHz |
| ECC ?ompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 5 |
| USB 2.0 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 304.8 mm |
| Depth | 277 mm |
| Other features | |
| mSATA ports quantity | 0 |
