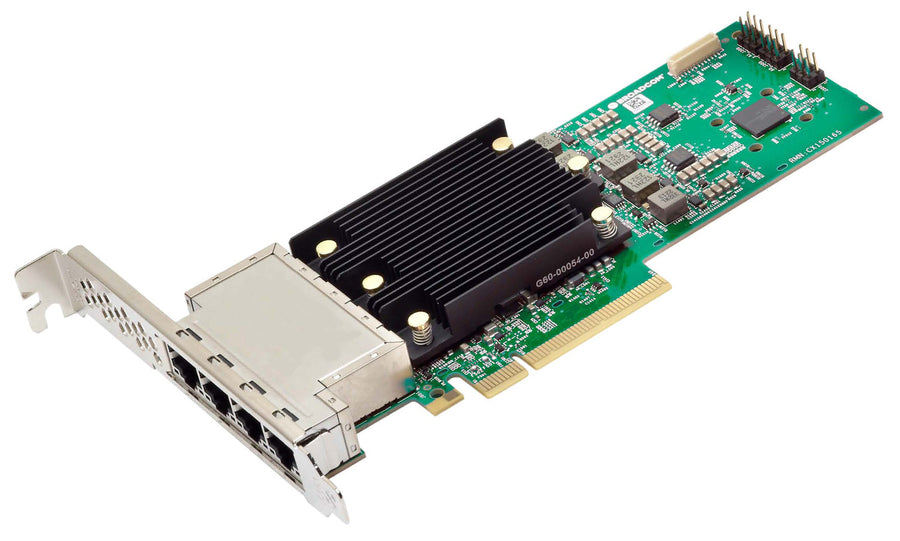

Lenovo 4XC7A95697 network card Internal Ethernet 10000 Mbit/s
Product overview & specifications
Broadcom 57412 10GBase-T 4-Port PCIe Ethernet Adapter
The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE. The 57412 10GBASE-T adapters are available in PCIe and OCP form factors.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Multicolour |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Jumbo frames | 9600 |
| Ethernet LAN | Yes |
| Cabling technology | 10GBase-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Maximum data transfer rate | 10000 Mbit/s |
| Link aggregation | Yes |
| Design | |
| Product colour | Multicolour |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Component for | Server |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 168 mm |
| Height | 69 mm |
| Other features | |
| Jumbo frames | 9600 |
