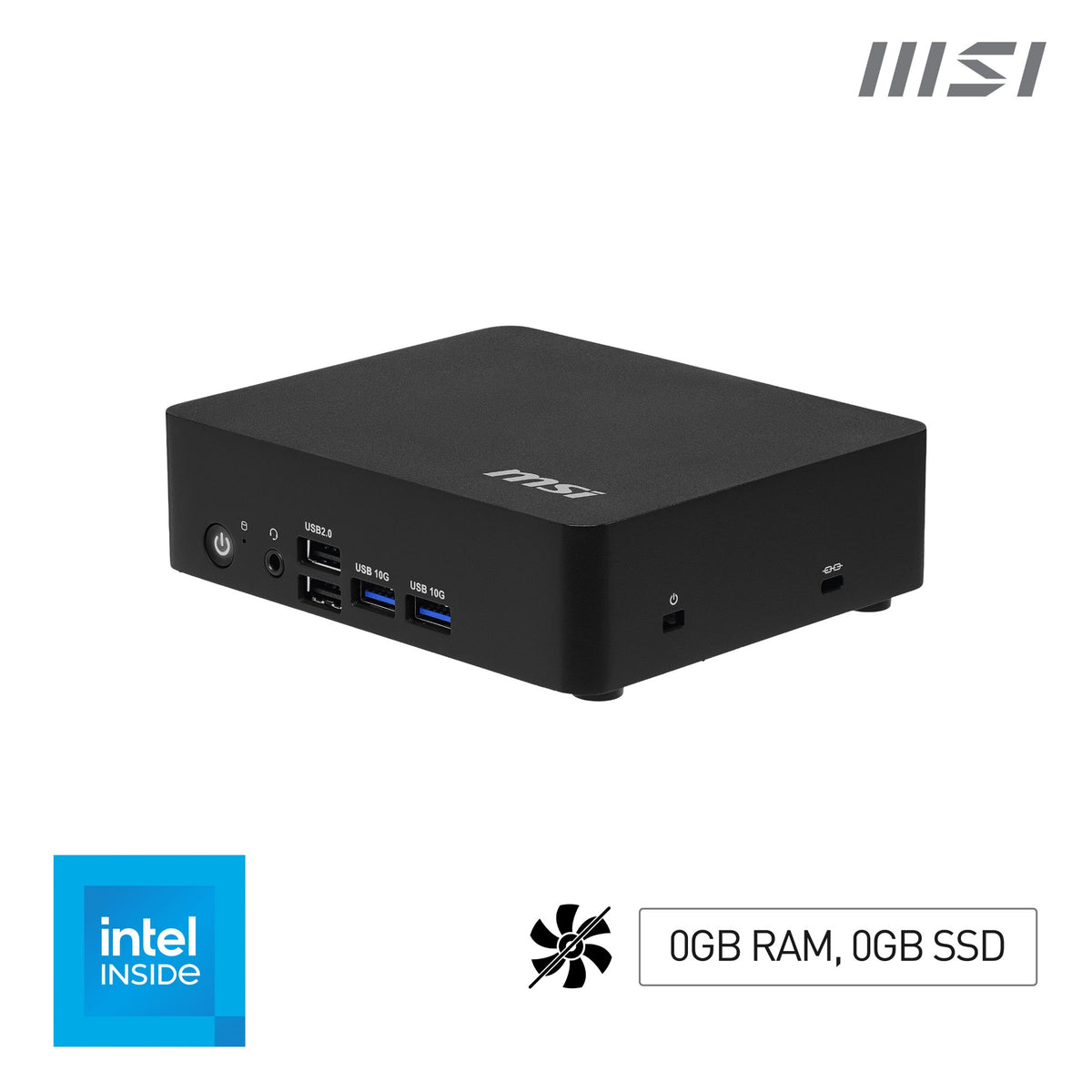

MSI Cubi NUC TWG S N150 BB (Intel N150, NO RAM, NO SSD, NO OS) - Barebone, NUC, USFF, Mini Computer, Fanless/Intel Graphics/DDR5/Type-C/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Product overview & specifications
MSI Cubi NUC TWG S N150 BB (Intel N150, NO RAM, NO SSD, NO OS) - Barebone, NUC, USFF, Mini Computer, Fanless/Intel Graphics/DDR5/Type-C/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Compact
The Cubi NUC TWG Mini PC comes in a palm-sized 135.6 X 112.6 X 40.1 mm case (0.55L/0.54Kg) with far less performance trade-off compared to laptops.
The Cubi NUC TWG Series is an exceptionally quiet system due to it's fan-less design, and includes an Intel N Series processor.
Triple Display Support
The rear & front I/O panels include USB Type-C and HDMI 2.1, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.
USB Type-C supports the power delivery output of 15W.
Dual LAN
Network connectivity includes WiFi, Bluetooth, and dual Ethernet LAN (1G & 2.5G).
fTPM technology provides security for storing sensitive data & passwords.
Kensington Lock slot included.
Cable Organizer Design
Cable Organizer keeps cables neat, secure, and protected. The built-in cable organizer prevents accidental disconnections and ensures stable connections even in tight or vibration-prone environments.
MSI Power Link, VESA Mountable Design, Sustainable Design, MSI AI Engine
MSI Power Link
The MSI Power Link allows the power button of MSI-selected monitors to turn on/off the Cubi TWG Series.
External Power Switch (Optional)
VESA Mountable Design
The chassis is VESA-mountable (standard 100x100 & 75x75), transforming a standard compact desktop layout into an ultra-minimalist, distraction-free environment.
Sustainable Design
Made with PCR (Post-consumer Recycled) plastic materials.
Reduce waste by using a recycled molded pulp tray packing design.
Manufactured with 99% of renewable energy in factory.
MSI AI Engine
MSI AI Engine offers multiple optimizations to reduce workload.
The Cubi NUC TWG Mini PC comes in a palm-sized 135.6 X 112.6 X 40.1 mm case (0.55L/0.54Kg) with far less performance trade-off compared to laptops.
The Cubi NUC TWG Series is an exceptionally quiet system due to it's fan-less design, and includes an Intel N Series processor.
Triple Display Support
The rear & front I/O panels include USB Type-C and HDMI 2.1, which support triple monitor setups for improved workflow efficiency or previewing e-commerce content.
USB Type-C supports the power delivery output of 15W.
Dual LAN
Network connectivity includes WiFi, Bluetooth, and dual Ethernet LAN (1G & 2.5G).
fTPM technology provides security for storing sensitive data & passwords.
Kensington Lock slot included.
Cable Organizer Design
Cable Organizer keeps cables neat, secure, and protected. The built-in cable organizer prevents accidental disconnections and ensures stable connections even in tight or vibration-prone environments.
MSI Power Link, VESA Mountable Design, Sustainable Design, MSI AI Engine
MSI Power Link
The MSI Power Link allows the power button of MSI-selected monitors to turn on/off the Cubi TWG Series.
External Power Switch (Optional)
VESA Mountable Design
The chassis is VESA-mountable (standard 100x100 & 75x75), transforming a standard compact desktop layout into an ultra-minimalist, distraction-free environment.
Sustainable Design
Made with PCR (Post-consumer Recycled) plastic materials.
Reduce waste by using a recycled molded pulp tray packing design.
Manufactured with 99% of renewable energy in factory.
MSI AI Engine
MSI AI Engine offers multiple optimizations to reduce workload.
| Motherboard | |
|---|---|
| Processor socket | BGA 1264 |
| Motherboard chipset | Intel SoC |
| Processor | |
| Built-in processor | Yes |
| Processor model | N150 |
| Processor boost frequency | 3.6 GHz |
| Processor threads | 4 |
| Processor frequency | 3.6 GHz |
| Processor socket | BGA 1264 |
| Processor cores | 4 |
| Processor family | Intel® N |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
| Internal memory installed | No |
| Video | |
| On-board graphics card | Yes |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| Optical drive type | No |
| Storage drives installed | No |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® Graphics |
| Discrete graphics card model | Not available |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | BGA 1264 |
| Optical drive type | No |
| Motherboard chipset | Intel SoC |
| Operating system installed | No |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 3 ports quantity | 0 |
| Design | |
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | USFF |
| Market positioning | Business |
| Colour | |
| Product colour | Black |
| Technical details | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Processor cores | 4 |
| Optical drive type | No |
| Cooling type | Passive |
| Chassis type | USFF |
| Warranty period | 3 year(s) |
| Software | |
| Operating system installed | No |
| Power | |
| Power supply type | External AC adapter |
| Power supply | 65 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 112.6 mm |
| Depth | 135.6 mm |
| Height | 40.1 mm |
| Package weight | 1.29 kg |
| Weight | 540 g |
| Packaging data | |
| Package weight | 1.29 kg |
| Packaging content | |
| Display included | No |
| Other features | |
| Chassis type | USFF |
| Warranty period | 3 year(s) |
MSI Cubi NUC TWG S N150 BB (Intel N150, NO RAM, NO SSD, NO OS) - Barebone, NUC, USFF, Mini Computer, Fanless/Intel Graphics/DDR5/Type-C/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£210.16
