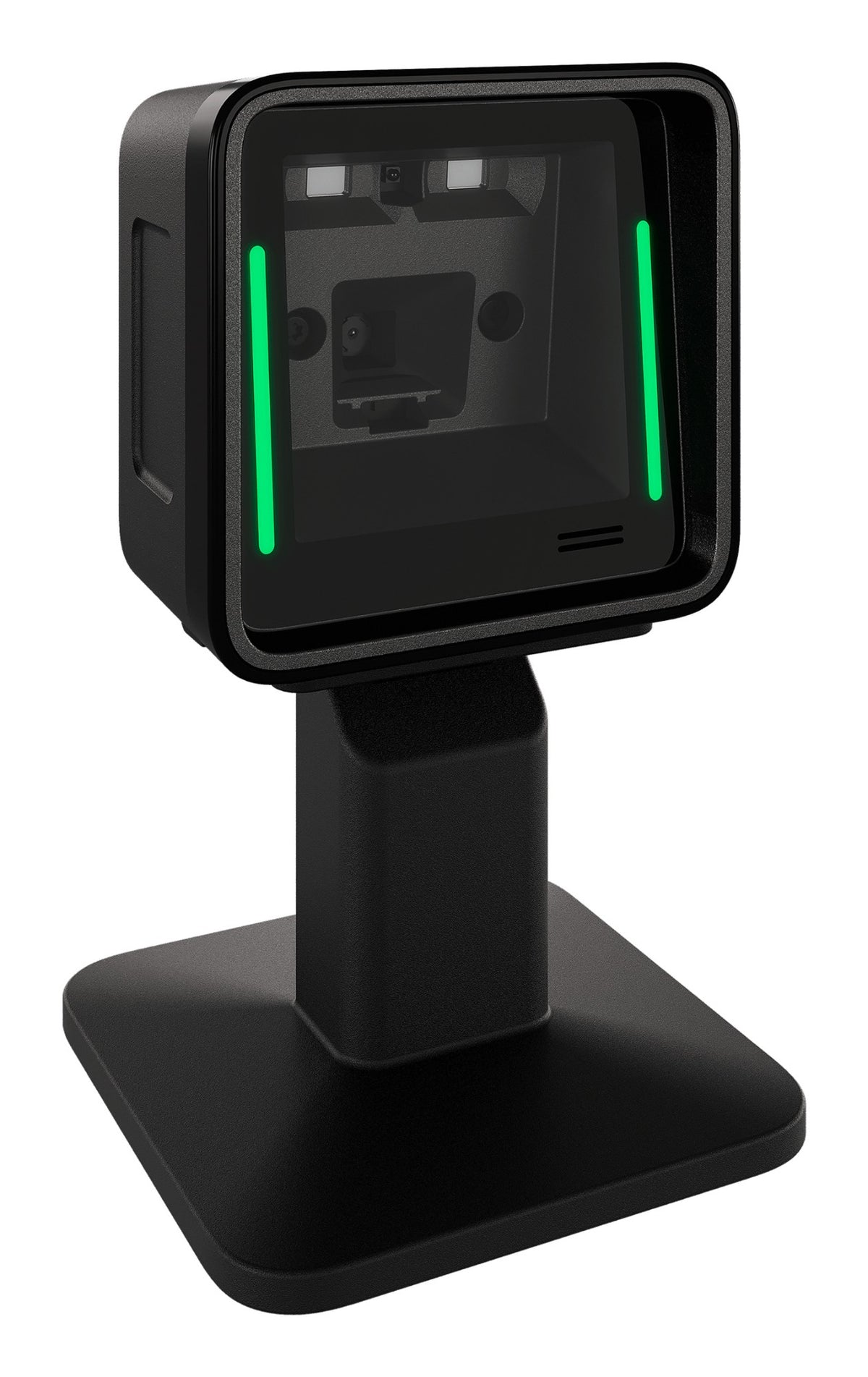

Zebra SP2002 Fixed bar code reader 1D/2D CMOS Black
Product overview & specifications
Single Plane Area Imager - Cube Only, Standard Range, 1 Megapixel (1280 x 800 pixels), 62° H x 41° V nominal, 1D, 2D, OCR, Digimarc, GS1, USB, RS232 (TTL), Midnight Black
Reliable checkout performance at a price that fits your budget. Ideal for small retailers, Quick Serve Restaurants (QSRs), convenience stores, and speciality shops
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1 DataBar, Code 32 |
| 2D (matrix & stacked) barcodes supported | QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode, SecurPharm, Postal Codes, GS1 Digital Link |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance range | 64 - 198 mm |
| Horizontal field of view | 62° |
| Vertical field of view | 41° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant |
| LED indicators | Power |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Print contrast | 20% |
| Design | |
| Type | Fixed bar code reader |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant |
| LED indicators | Power |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | USB, RS-232 |
| Input voltage | 4.75 - 5.25 V |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 57 mm |
| Height | 75 mm |
| Weight | 110 g |
| Technical details | |
| Type | Fixed bar code reader |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant |
| LED indicators | Power |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Warranty period | 3 year(s) |
| Compliance certificates | IECEx, CSA, UL |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.5 m |
Zebra SP2002 Fixed bar code reader 1D/2D CMOS Black
£123.10
