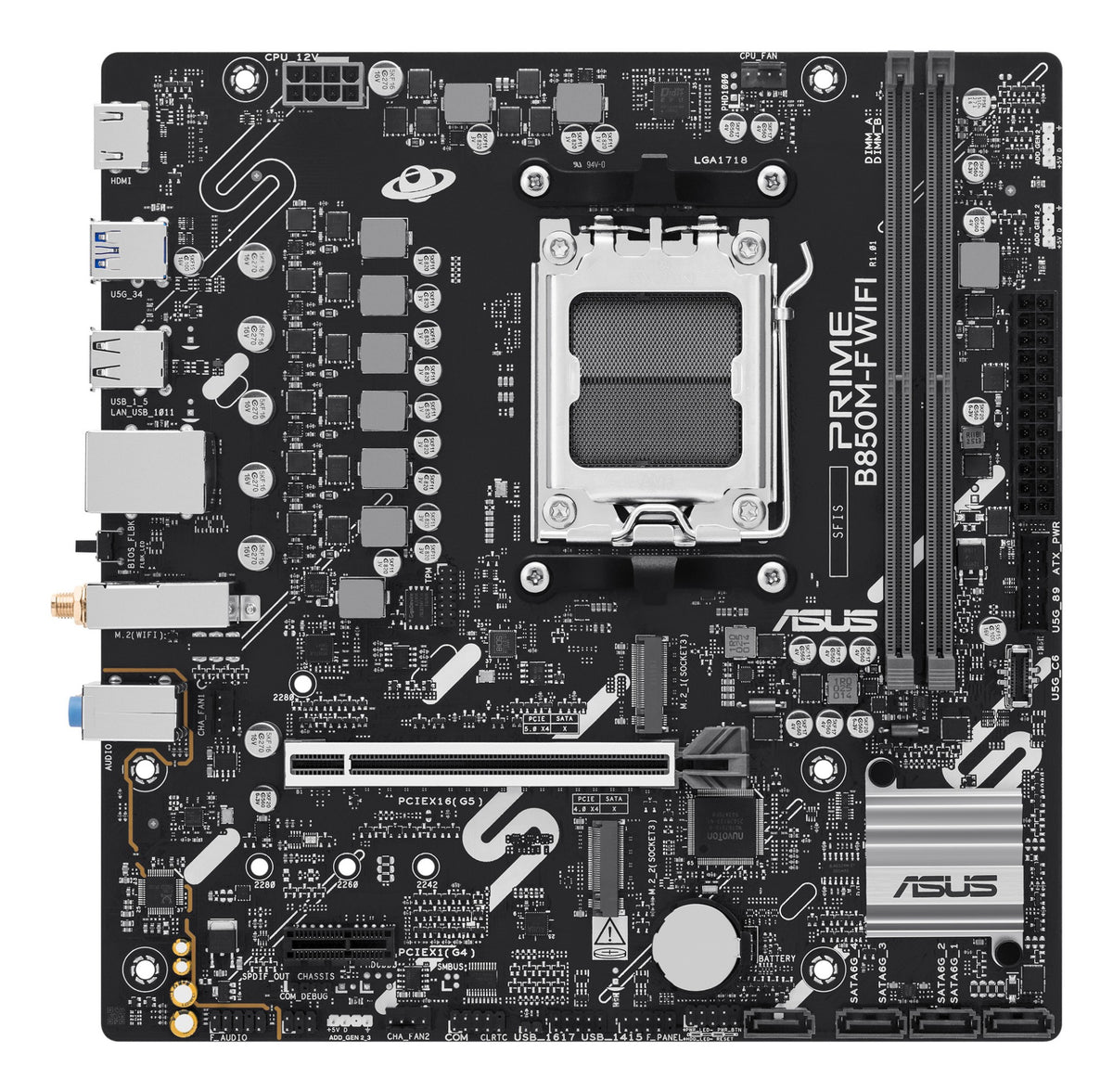

ASUS PRIME B850M-F WIFI AMD B850 Socket AM5 micro ATX
Product overview & specifications
AMD B850, AM5, 2 x DIMM slots, max. 128GB, DDR5, M.2/SATA III, Realtek 1GB Ethernet, Wi-Fi 6, Bluetooth 5.3, 256 Mb Flash ROM, UEFI AMI BIOS, micro-ATX
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8400 MHz |
| ECC ?ompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Multicolour |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 260 mm |
| Package height | 51.5 mm |
| Package weight | 937 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Height | 36.5 mm |
| Package width | 270 mm |
| Package depth | 260 mm |
| Package height | 51.5 mm |
| Package weight | 937 g |
| Weight | 550 g |
| Width | 222 mm |
| Depth | 226 mm |
| Other features | |
| Height | 36.5 mm |
| Package width | 270 mm |
| Package depth | 260 mm |
| Package height | 51.5 mm |
| Package weight | 937 g |
| Weight | 550 g |
| PCI Express x1 (Gen 4.x) slots | 1 |
