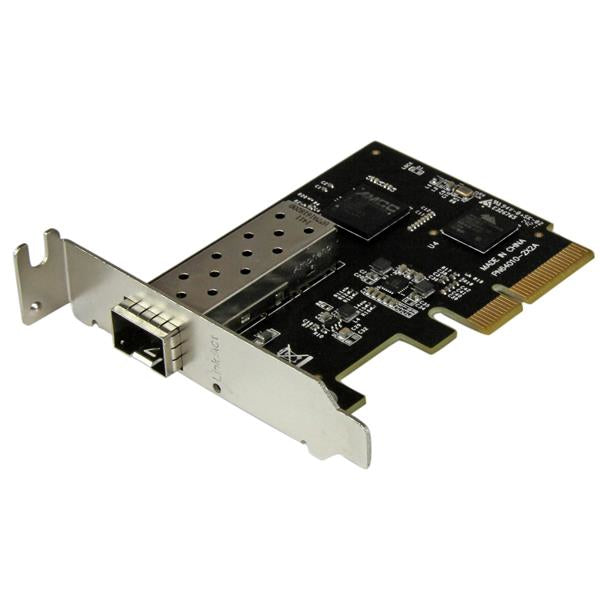

StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Adapter

BrandStarTech.com
SKU / Part numberPEX10000SFP
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
StarTech.com PCI Express 10 Gigabit Ethernet Fiber Network Card w/ Open SFP+ - PCIe x4 10Gb NIC SFP+ Card - 10GbE Fiber Ethernet Adapter
The PEX10000SFP 10 Gigabit Fiber Network Card is a cost-effective solution that delivers fast and reliable 10 Gbps network access at longer distances than copper-based networks. Using the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fiber optic network.

Faster Networking Speed
With the rising strain on network resources due to large file transfers, multimedia content, and an increase in network users, more bandwidth is often required at various levels of your networking infrastructure. With up to 10 Gbps bandwidth, this fiber NIC lets you transfer more data at faster speeds, and is an ideal low-cost addition to your server or high-powered workstation.

Greater Flexibility & Distance
The PEX10000SFP adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP+ slot, and is compatible with most 10GbE SFP+ transceivers. With broad SFP+ compatibility this cost-effective fiber card lets you use your preferred SFP+ module, giving you more options to connect your computer directly to a fiber network at greater distances.

Superior Power Efficiency
For improved operating efficiency, the PEX10000SFP features an energy-efficient Tehuti TN4010 chipset that offers significantly reduced power consumption versus most comparable cards, including the Intel® 82599 chipset cards. Superior power efficiency also helps minimize heat generated by the card, in turn avoiding an increase in the operating temperature within your server case.

This versatile 10 Gbps network card offers 16K Jumbo Frame and 802.1q VLAN tagging support, as well as compatibility with VMWare® ESXi 5.0/5.1, Microsoft Hyper-V® virtualization software, and iSCSI support to combine LAN and SAN functions.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Scale your network performance to meet increased demand, with 10 Gbps speed over greater distances than standard copper networks
- Adapt to your network configuration using the 10GbE fiber transceiver module of your choice, through an open SFP+ slot
- Reduce power consumption and costs, with an energy-efficient and cost-effective chipset
Ports & interfaces
Internal Yes
PCI version 2.0
Fiber ports quantity 1
Fiber optic connector SFP+
Interface Ethernet / Fiber
Host interface PCI Express
Connectivity technology Wired
Bandwidth
Full duplex Yes
Maximum data transfer rate 20000 Mbit/s
Network
Chipset Tehuti - TN4010, AMCC - QT2025
VLAN tagging Yes
Ethernet LAN Yes
Networking standards IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Jumbo frames support Yes
Full duplex Yes
Ethernet LAN data rates 10000 Mbit/s
Maximum data transfer rate 20000 Mbit/s
Flow control support Yes
Technical details
Product colour Black
Harmonized System (HS) code 85176990
Compliance certificates RoHS
Design
Product colour Black
Chipset Tehuti - TN4010, AMCC - QT2025
Certification CE, FCC, REACH
Internal Yes
LED indicators Activity
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported Yes
Other operating systems supported VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5
Power
Power consumption (typical) 4.12 W
Indication
LED indicators Activity
System requirements
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported Yes
Other operating systems supported VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -20 - 85 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Width 19 mm
Depth 83 mm
Height 120 mm
Weight 43 g
Package width 173 mm
Package depth 144 mm
Package height 30 mm
Package weight 145 g
Packaging data
Drivers included Yes
Package width 173 mm
Package depth 144 mm
Package height 30 mm
Package weight 145 g
Mounting brackets included Yes
Manual Yes
Packaging content
Mounting brackets included Yes
Manual Yes
Drivers included Yes
Performance
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Linux operating systems supported Yes
Other operating systems supported VMware ESX/ESXi 5.0, VMware ESX/ESXi 5.1, VMware ESX/ESXi 6.0, VMware ESX/ESXi 6.5
Certificates
Certification CE, FCC, REACH
Other features
Chipset Tehuti - TN4010, AMCC - QT2025
Manual Yes
Flow control support Yes
Harmonized System (HS) code 85176990
Logistics data
Harmonized System (HS) code 85176990
