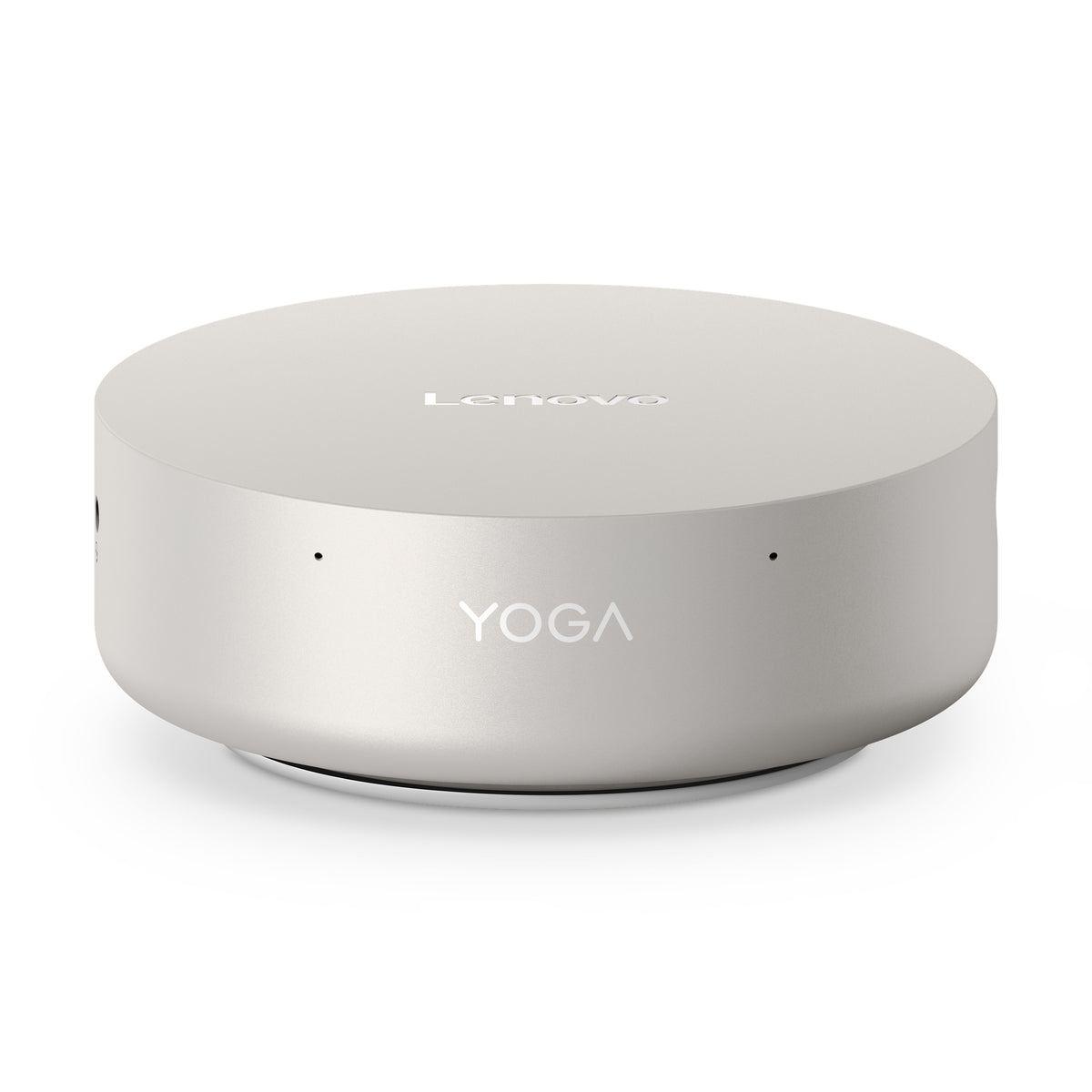

Lenovo Yoga Mini 01IPH11 Intel Core Ultra 5 325 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Home Mini PC Grey
Product overview & specifications
Intel Core Ultra 5 325, 8C (4P + 4LPE)/8T, Max Turbo up to 4.5GHz, 12MB Intel Smart Cache, 16GB LPDDR5X-8533, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe, Intel Graphics, Wi-Fi 7 802.11be 2x2 320MHz+ BT5.4, Windows 11 Home
- Ultralight, aluminum mini PC with robust functionality & smart sensing features for amplified productivity
- High performance, enhanced memory & superior graphics with Intel� CoreT Ultra Series 3 processor
- Adaptive Lighting, smart connectivity & easy storage expansion for limitless possibilities
Specifications
| Processor | |
|---|---|
| Processor generation | Intel� CoreT Ultra (Series 3) |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | 325 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 8 |
| Processor cores | 8 |
| Processor family | Intel Core Ultra 5 |
| Performance cores | 4 |
| Efficient cores | 0 |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor base power | 25 W |
| Maximum turbo power | 55 W |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 40 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory clock speed | 8533 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� Graphics |
| On-board GPU manufacturer | Intel |
| Performance | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard chipset | Intel SoC |
| Audio chip | Realtek ALC3341S |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Intel� Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Power | |
| Power supply | 100 W |
| Technical details | |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Grey |
| Chassis type | Mini PC |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel SoC |
| Design | |
| Volume | 0.65 L |
| Product colour | Grey |
| Chassis type | Mini PC |
| Colour name | Seashell |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Home |
| Display | |
| Display included | No |
| Processor special features | |
| Low Power Efficient-cores | 4 |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
| Audio | |
| Audio chip | Realtek ALC3341S |
| Number of speakers | 1 |
| Audio system | High Definition Audio |
| Weight & dimensions | |
| Volume | 0.65 L |
| Width | 130 mm |
| Depth | 130 mm |
| Height | 48.6 mm |
| Weight | 600 g |
| Certificates | |
| Certification | RoHS |
| Packaging content | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
