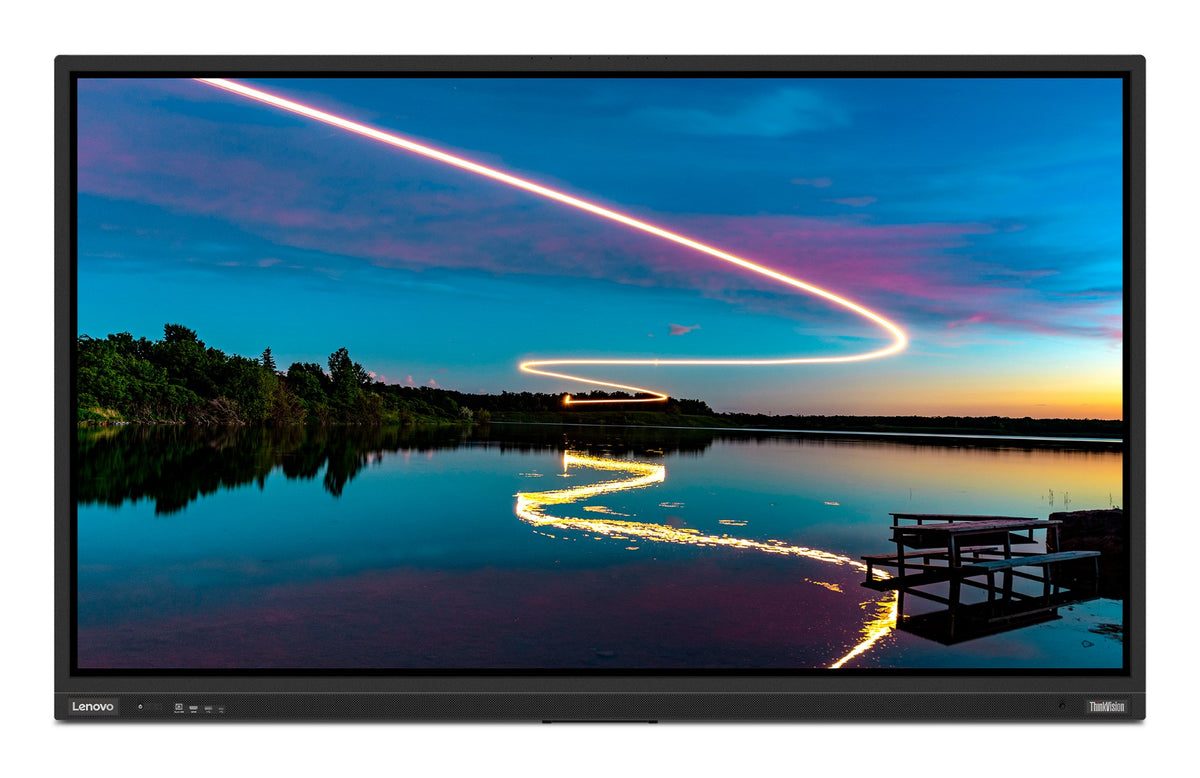

Lenovo ThinkVision T86 computer monitor 2.18 m (86") 3840 x 2160 pixels 4K Ultra HD LED Touchscreen Black
Product overview & specifications
86", 3840 x 2160 DLED VA Touch, 60Hz, 16:9, 400cd/m�, 178� / 178�
62F0WA1AEK
Features:
• Display Size : 86
• View Area : 1895.0x1066.0 mm
• Panel : Vertical Alignment
• Backlight : DLED
• Aspect Ratio : 16:9
• Resolution : 3840x2160
• Pixel Pitch : 0.4935x0.4935 mm
• Dot / Pixel Per Inch : 51 dpi
• View Angle (H / V) : 178? / 178?
• Response Time : 6.5ms
• Color Support : 1.07 Billion
• Refresh Rate : 60Hz
• Brightness : 400 cd/m?
• Contrast Ratio : 4000:1
• Color Gamut : 85% NTSC 99%sRGB
• Screen Surface Treatment : Anti-glare
• Curvature : None
• Camera : Detachable 4K Camera
• Microphone: 8x Array
• Speakers :15Wx2
• Power Consumption (Typical / Maximum) : 350W / 410 W
• Power Adapter Integrated
• Touchscreen: 20-point IR Touch
• Smart System : Android™ 9.0 / 4x A73 Cores / 4 GB / 64 GB / Remote Control with Battery
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Built-in microphone | Yes |
| Built-in camera | No |
| Operating system installed | Android 9 |
| Display | |
| Display brightness (typical) | 400 cd/m� |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Pixel density | 51 ppi |
| Colour gamut | 85% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 99% |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178� |
| Viewing angle, vertical | 178� |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Viewable size, horizontal | 189.5 cm |
| Viewable size, vertical | 106.6 cm |
| Backlight type | Direct LED |
| Display resolution | 3840 x 2160 pixels |
| Response time | 6.5 ms |
| Display diagonal | 2.18 m (86") |
| Contrast ratio (typical) | 4000:1 |
| NTSC coverage (typical) | 85% |
| Touchscreen | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Panel type | VA |
| Colour depth | 10 bit |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| Display brightness | 400 cd/m� |
| Anti-glare screen | Yes |
| Management features | |
| On Screen Display (OSD) | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Built-in microphone | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Certification | RoHS T�V Rheinland Flicker Free T�V Rheinland Low Blue Light |
| Product colour | Black |
| Colour name | Raven black |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-A, USB Type-B, USB Type-C |
| Number of upstream ports | 9 |
| USB Type-A downstream ports quantity | 5 |
| USB Type-C downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 5 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Microphone in | Yes |
| PC Audio in | Yes |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | No |
| USB Type-C DisplayPort Alternate Mode | No |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 2 |
| USB Touch ports quantity | 2 |
| USB Touch port | Yes |
| OPS module slot | Yes |
| DisplayPort out quantity | 0 |
| USB Type-B downstream ports quantity | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Technical details | |
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Placement supported | Indoor |
| HDMI | Yes |
| Built-in microphone | Yes |
| Product colour | Black |
| Built-in processor | Yes |
| Power supply type | Internal |
| Touchscreen | Yes |
| Network | |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Remotely operated | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| On Screen Display (OSD) | Yes |
| Height adjustment | No |
| Power | |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 410 W |
| Power consumption (typical) | 350 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 193 kWh |
| Weight & dimensions | |
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Bezel width (side) | 1.88 cm |
| Weight (without stand) | 68 kg |
| Package width | 2119 mm |
| Package depth | 275 mm |
| Package height | 1353 mm |
| Package weight | 88 kg |
| Packaging data | |
| Package width | 2119 mm |
| Package depth | 275 mm |
| Package height | 1353 mm |
| Package weight | 88 kg |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Remote control batteries included | Yes |
| Stylus included | Yes |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Remote control batteries included | Yes |
| Stylus included | Yes |
| Thin Client | |
| Operating system installed | Android 9 |
| Processor cores | 4 |
| Processor model | A73 |
| Other features | |
| Built-in processor | Yes |
| Placement supported | Indoor |
| Certification | RoHS T�V Rheinland Flicker Free T�V Rheinland Low Blue Light |
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Power consumption (max) | 410 W |
| Bluetooth | Yes |
| Remote control included | Yes |
| Bluetooth version | 5.0 |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | No |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| USB Power Delivery (USB PD) | No |
| Certificates | |
| Certification | RoHS T�V Rheinland Flicker Free T�V Rheinland Low Blue Light |
