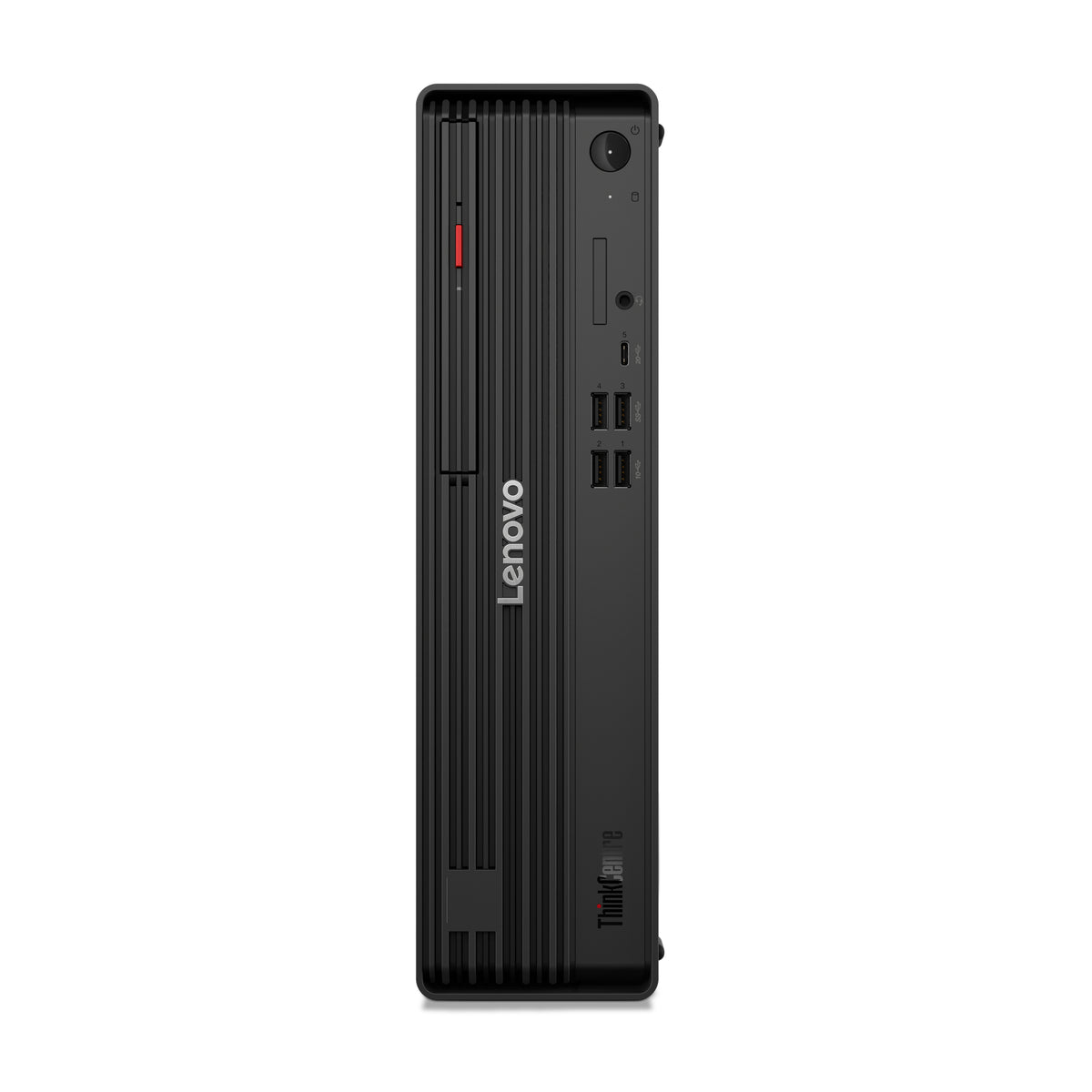

Lenovo ThinkCentre M70s Gen 6 Intel Core Ultra 5 225 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
Product overview & specifications
Intel Core Ultra 5 225, 10C (6P + 4E)/10T, Max Turbo up to 4.9GHz, 20MB Intel Smart Cache, 1x 16GB UDIMM DDR5-5600, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel Graphics, Windows 11 Pro
Small Chassis, Big Performance
A small form factor (SFF) AI PC with commercial-grade reliability that delivers smooth performance & promotes high productivity.- Enterprise-grade performance, security & manageability with Intel vPro�
- Industry-leading GPUs & powerful AI performance to handle demanding workloads
- Versatile & adaptable SFF with multiple ports & expandable storage options for multitasking
Specifications
| Processor | |
|---|---|
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cache type | Smart Cache |
| Processor cache | 20 MB |
| Processor model | 225 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.9 GHz |
| Processor threads | 10 |
| Processor cores | 10 |
| Processor family | Intel Core Ultra 5 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core base frequency | 3.3 GHz |
| Efficient-core base frequency | 2.7 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 121 W |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 23 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 4 TOPs |
| Memory | |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | SFF |
| Audio system | High Definition Audio |
| Cable lock slot | Yes |
| Motherboard chipset | Intel� Q870 |
| Design | |
| Volume | 8.2 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | SFF |
| Cable lock slot | Yes |
| Performance | |
| Audio chip | Realtek ALC623-CG |
| Number of speakers | 1 |
| Product type | PC |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel� Q870 |
| Software | |
| Operating system language | English |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 260 W |
| Certificates | |
| Certification | ENERGY STAR,TCO,RoHS |
| Weight & dimensions | |
| Volume | 8.2 L |
| Width | 92.5 mm |
| Depth | 299.7 mm |
| Height | 339.5 mm |
| Weight | 5.1 kg |
| Packaging content | |
| Mouse included | Yes |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
Lenovo ThinkCentre M70s Gen 6 Intel Core Ultra 5 225 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro SFF PC Black
£861.05
