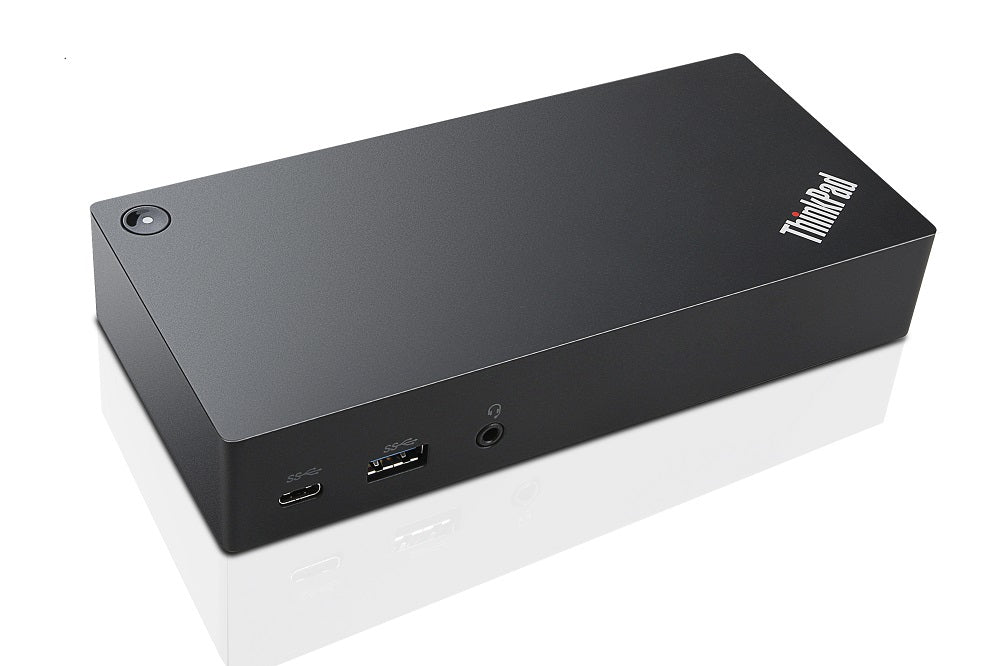

Lenovo 40A90090EU laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Product overview & specifications
2 x DisplayPort + VGA, 2 x USB 2.0, 3 x USB 3.0, RJ-45, 1 x Combo audio, 4K @ 30 Hz, 90 W, 131 g, EU
The ThinkPad USB-C Dock is a new universal docking solution ensuring a productive workstation. Experience all your productivity needs including video, data, and wired network all while delivering continuous power to your laptop via a robust USB Type-C port. Simply connect your laptop or tablet with the dock and boost your productivity in no time. Single UHD display30Hz or dual FHD displays allow you to enjoy a vivid video experience.Always Connected via USB Type-C
A Power Hub for Your Desk
Experience up to 60W of stable, reliable, and continuous power for your laptop or tablet ensuring your station is always ready for peak productivity. Apart from charging your notebook or tablet and mobile device charging with 15W and 10.5W from the USB-C port and USB 3.0 always power on port respectively.
An Unprecedented View
Enjoy a vivid video experience with an Ultra High Definition (UHD - 4K) display or take multi-tasking to a new level two FHD (1080p) displays.
An Enterprise Flagship
Supports network manageability for your ThinkPad system such as PXE boot, system Wake-On LAN from Sleep mode, Hibernate mode, or Power-off mode, and Pass through ThinkPad notebook MAC address to the dock.
Complete Control of Your Device
Once your ThinkPad device is connected to the dock, the power button on the dock mirrors the system power button - simply press it to power your system ON or OFF.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| 10G support | No |
| Performance | |
| Number of displays supported | 2 |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| Compatibility | A475, A275, E585, E485, E580, E480, E570,L380 Yoga, L380, L580, L480, Lenovo tablet 10, Miix 720, Miix 520, Miix 510, Miix 510, T580, T570, T480, T480s, T470, T470s, X1 Tablet Gen 3,X1 Tablet Gen 2, X1 Tablet Gen 1, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X380 Yoga, X280, X270,Yoga 370, 13 Gen 2 Windows, 13 Gen 1 Windows, 11e Gen 5, Yoga 11e Gen 5, V330S-15ARR,V330-15ISK, V330-14IKB, V330-15IKB, ThinkPad 25 |
| Cable lock slot | Yes |
| Certification | CB,CULUS,EAC,TUV Mark,FCC,ICES, DOC, NOM,KCC, RCM, BSMI, VCCI, CE, LoA |
| Cable lock slot type | Kensington |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Lenovo |
| Compatibility | A475, A275, E585, E485, E580, E480, E570,L380 Yoga, L380, L580, L480, Lenovo tablet 10, Miix 720, Miix 520, Miix 510, Miix 510, T580, T570, T480, T480s, T470, T470s, X1 Tablet Gen 3,X1 Tablet Gen 2, X1 Tablet Gen 1, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X380 Yoga, X280, X270,Yoga 370, 13 Gen 2 Windows, 13 Gen 1 Windows, 11e Gen 5, Yoga 11e Gen 5, V330S-15ARR,V330-15ISK, V330-14IKB, V330-15IKB, ThinkPad 25 |
| Cable lock slot | Yes |
| Harmonized System (HS) code | 84733020 |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| Power plug type | Type C |
| Compatible power plug types | EU |
| Power supply type | External |
| Power supply | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 �C |
| Operating relative humidity (H-H) | 20 - 95% |
| Weight & dimensions | |
| Width | 171 mm |
| Depth | 80 mm |
| Height | 32.5 mm |
| Design | |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | CB,CULUS,EAC,TUV Mark,FCC,ICES, DOC, NOM,KCC, RCM, BSMI, VCCI, CE, LoA |
| Cable lock slot type | Kensington |
| Packaging content | |
| Cables included | AC, USB Type-C |
| AC adapter included | Yes |
| Certificates | |
| Certification | CB,CULUS,EAC,TUV Mark,FCC,ICES, DOC, NOM,KCC, RCM, BSMI, VCCI, CE, LoA |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Power supply type | External |
