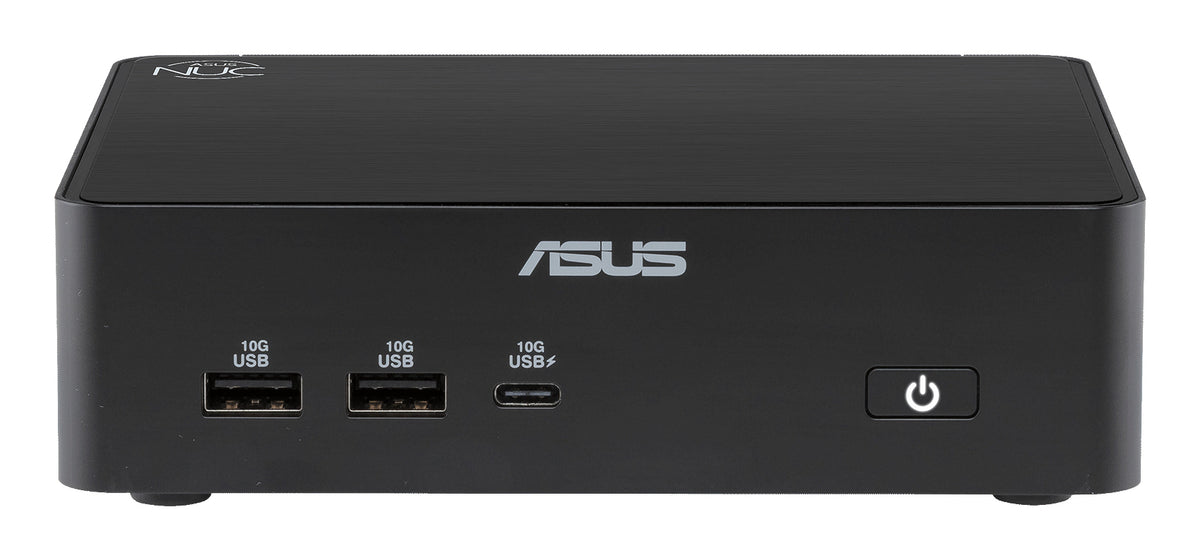

ASUS NUC RNUC16GDKU5663N3 Intel Core Ultra 5 325 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product overview & specifications
Intel Core Ultra 5 325 (12MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel Graphics, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Faster, Smarter, More Secure
For the AI-Driven Enterprise
The ASUS NUC 16 Pro mini PC features up to the latest Intel� CoreT Ultra X9 series 3 processor featuring Intel ArcT, delivering up to 1.5X-faster gen-on-gen 3D graphics performance, and supports up to 96GB of lightning-fast LPDDR5x memory-all while boasting incredible energy efficiency. Built-in firmware TPM 2.0 (fTPM 2.0) handles data security and management, while dual 2.5G LAN and two HDMI� ports ensure convenient connectivity. Its AI-ready performance and robust security make the NUC 16 Pro ideal for businesses.
Specifications
| Processor | |
|---|---|
| Processor generation | Intel� CoreT Ultra (Series 3) |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | 325 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.5 GHz |
| Processor socket | FCBGA2540 |
| Processor threads | 8 |
| Processor cores | 8 |
| Processor family | Intel Core Ultra 5 |
| Performance cores | 4 |
| Efficient cores | 0 |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor base power | 25 W |
| Maximum turbo power | 55 W |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | OpenVINO, Windows ML, ONNX RT, WebNN |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 40 TOPs |
| Memory | |
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Optical drive type | No |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel� Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel� Graphics |
| On-board GPU manufacturer | Intel |
| Performance | |
| Market positioning | Home & office |
| Product type | Mini PC |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet LAN data rates | 2500 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Intel� Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Design | |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Colour name | Black |
| Introduction year | 2026 |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Display | |
| Display included | No |
| Weight & dimensions | |
| Width | 144 mm |
| Depth | 117 mm |
| Height | 42 mm |
| Weight | 910 g |
| Packaging content | |
| Display included | No |
| Other features | |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
