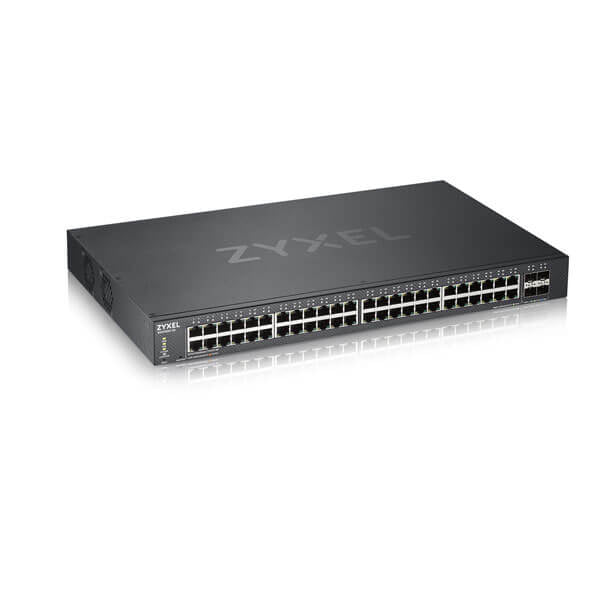

Zyxel XGS1930-52 Managed L3 Gigabit Ethernet (10/100/1000) Black
Product overview & specifications
XGS1930-52 - 48-port GbE Smart Managed Switch with 4 SFP+ Uplink
The most affordable choice for 10G migration
The XGS1930 series, a new 10G uplink smart managed switch, comes with a stylish new look and enables cloud manageability with Zyxel NebulaFlexTM technology.
Built for convenience
This smart-looking switch features an intuitive design that simplifies daily network management for SMBs.
Manage it your way!
The XGS1930 series introduces Zyxel NebulaFlexTM, which allows you to easily switch between standalone mode and our license-free Nebula cloud management platform anytime with just a few simple clicks.
Don't overspend to upgrade your wired network
With Gigabit connectivity plus four 10G uplinks, the XGS1930 series is ideal for those seeking to upgrade to an easier-to-manage network-and at an affordable price.
Whisper-quiet operation
Smart fan and fanless designs for silent operation in your workplace.
Power more devices more easily
- Provides 30W per port and a high power budget of 375W, ideal for denser PoE deployments.
- Default consumption mode boosts efficiency by delivering the actual power required.
User-friendly LED indicators
View real-time status instantly with cloud and PoE power-usage LED indicators.
Zyxel ONE Network
Use the complimentary ZON Utility to configure and discover switches, WLANs, and gateways in your network with one click.
Designed for the long haul
A web smart managed switch with an enterprise-grade hardware design. Built-in state-of-the-art hardware technology brings high quality and robustness to SMB networks.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 32 |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Static route | Yes |
| Forwarding rate | 130.9 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Noise level | 26.3 dB |
| Mean time between failures (MTBF) | 827093 h |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Noise level | 26.3 dB |
| Mean time between failures (MTBF) | 827093 h |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SHA-2, SNMPv3, SSL/TLS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| DHCP features | DHCP client, DHCP relay, DHCPv6 relay |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Certificates | |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Black |
| Electromagnetic compatibility | FCC 15 A, CE A, BSMI EMC |
| Rack mounting | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 55.7 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 �C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 �C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 189.937 BTU/h |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 270 mm |
| Height | 44 mm |
| Weight | 3.7 kg |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 616 mm |
| Package depth | 355 mm |
| Package height | 107 mm |
| Package weight | 4.78 kg |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
