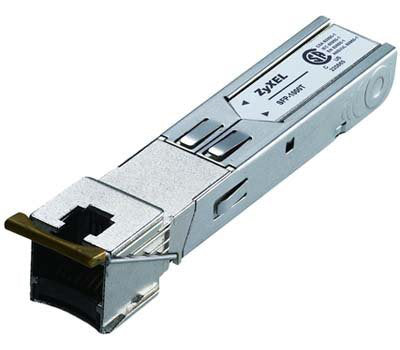

Zyxel SFP-1000T network transceiver module 1000 Mbit/s
Product overview & specifications
SFP-1000T, SFP, 1.25Gbps, RJ-45, up to 100m
Standard-based Design Secures Compatibility ZyXEL transceivers family follow industry standard to secure the compatibility with other brands' switches having no proprietary technology barrier. Rich Portfolio for Different Connectivity Demand Rich portfolio for Fast and Gigabit Ethernet, just plug in the proper one, users can extend the physical network boundary as far as they wish. Swappable Design Improves Network Maintenance Independent ZyXEL transceiver design provides the highest flexibility for network maintenance. Apart with switch, transceivers can be added when they are really in need. Moreover, infrastructure upgrade or transceivers repair can be done easily by just changing transceiver, not whole device.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Maximum transfer distance | 100 m |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Networking standards | IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Certification | 21 CFR 1040.10 and 1040.11 compliant CSA TUV |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 �C |
| Storage temperature (T-T) | -40 - 85 �C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 56 mm |
| Depth | 13.4 mm |
| Height | 12.5 mm |
| Weight | 16.79 g |
| Certificates | |
| Certification | 21 CFR 1040.10 and 1040.11 compliant CSA TUV |
