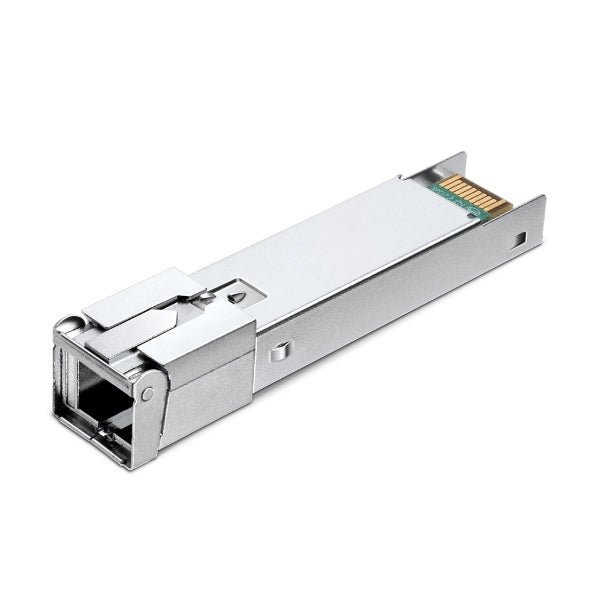

TP-Link SFP GPON Class C+ Module
Product overview & specifications
Tx: 2488.32Mbps, Rx: 1244.16Mbps, Tx: 1490nm, Rx: 1310nm, 20 km Max, GPON SFP
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (max) | 1490 nm |
| Rx wavelength (max) | 1310 nm |
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -30 dBmW |
| Rx power (max) | -12 dBmW |
| Maximum data transfer rate | 2488.32 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Features | |
| Product colour | Stainless steel |
| Hot-swap | Yes |
| Power | |
| Input voltage | 3.3 V |
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2488.32 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Hot-swap | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1490 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Tx power (min) | 3 dBmW |
| Tx power (max) | 7 dBmW |
| Rx power (min) | -30 dBmW |
| Rx power (max) | -12 dBmW |
