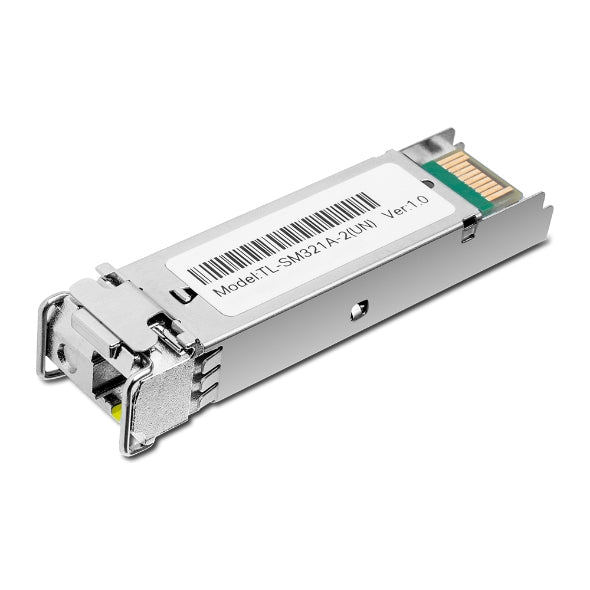

TP-Link Omada Gigabit Single-Mode WDM Bi-Directional SFP Module
Product overview & specifications
Gigabit Single-Mode WDM Bi-Directional SFP Module
TP-LINK�s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Tx wavelength (max) | 1550 nm |
| Rx wavelength (max) | 1310 nm |
| Wavelength-division multiplexing (WDM) | Yes |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 1000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | BX |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Metallic |
| Hot-swap | Yes |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Metallic |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 �C |
| Storage temperature (T-T) | -40 - 80 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC (UPC) |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 1000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Weight & dimensions | |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 60 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
