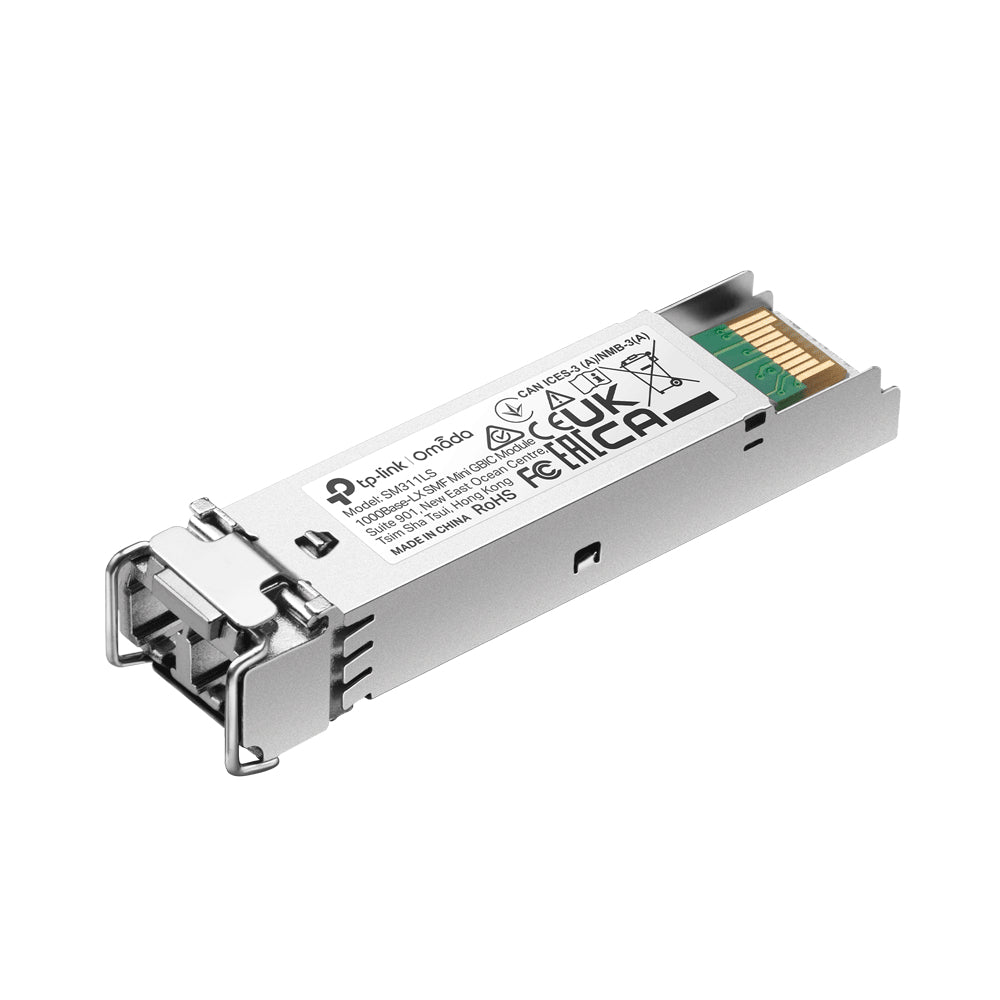

TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
Product overview & specifications
Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance
The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LX |
| Fiber ethernet cabling technology | 1000BASE |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Brand compatibility | MSA Compliant |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 �C |
| Storage temperature (T-T) | -40 - 85 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC |
| Weight & dimensions | |
| Width | 55.4 mm |
| Depth | 14.6 mm |
| Height | 12.9 mm |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 38 mm |
| Package height | 38 mm |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Maximum transfer distance | 20000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 �m |
| Duplex system | Full |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging data | |
| Package depth | 207 mm |
| Package width | 38 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Manual | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
