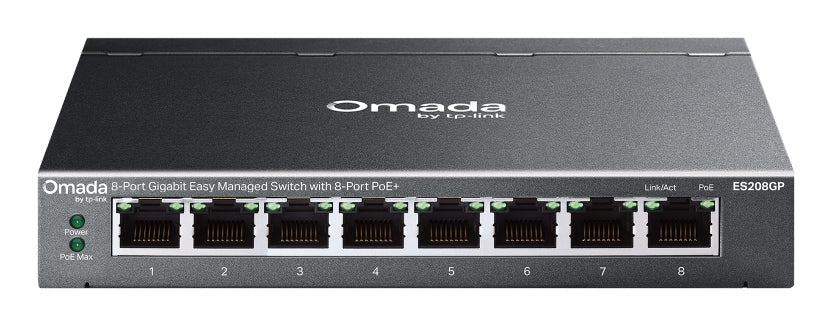

TP-Link Omada ES208GP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Black
Product overview & specifications
8� 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+), 64W, 158 � 100.7 � 25.4 mm
TP-Link ES208GP Omada 8-Port Gigabit Easy Managed Switch with 8-Port PoE+ PORT: 8? Gigabit PoE+ Ports SPEC: 802.3at/af, 64 W PoE Power, Desktop Steel Case and Fanless FEATURE: Centralized Management by Omada SDN Controller, Omada App. Flow Control, Loopback Detection, Port Isolation, Port Mirroring, LAG, VLAN, IGMP Snooping, QoS, Storm Control
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| IGMP snooping | Yes |
| Optical fiber | |
| Transmission distance (max) | 0.25 km |
| Data transmission | |
| Jumbo frames | 15000 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 11.904 Mpps |
| Number of VLANs | 4000 |
| Security | |
| Loop protection | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Form factor | DIN rail |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Power | |
| Input current | 1.31 A |
| DC input voltage | 53 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 �C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 100.7 mm |
| Height | 25.4 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | Power |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Auto-negotiation | Yes |
| Technical details | |
| Form factor | DIN rail |
| Product colour | Black |
| Rack mounting | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | Power |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
