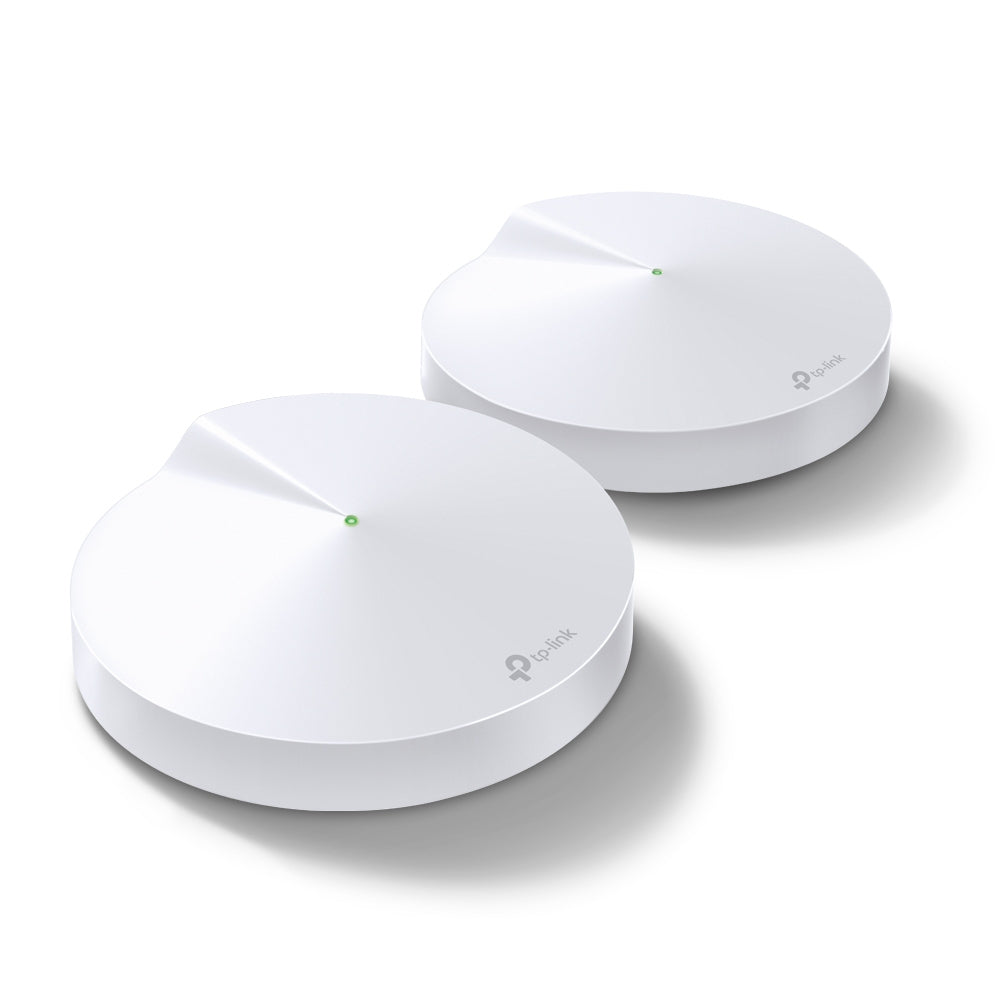

TP-Link AC1300 Deco Whole Home Mesh Wi-Fi System, 2-Pack
Product overview & specifications
AC1300 WiFi, 2.4 GHz / 5 GHz, 802.11ac/a/b/g/n, 717MHz Quad-core, Bluetooth 4.2, 2x LAN/WAN, 1x USB Type-C, 4 antennas 256QAM MU-MIMO, 2-Pack
EXPERIENCE WIFI LIKE NEVER BEFORE
Deco M5 uses new technology to cover your entire home in powerful WiFi. With multiple units working together seamlessly, Deco M5 creates a home network like nothing you've ever experienced.
No More Dead Zones
Deco M5 delivers WiFi up to 5,500 sq. ft. to cover homes of all sizes and shapes, from the corner bedroom to the backyard.
High-Speed WiFi
Every Deco unit acts like a router to keep your Wi-Fi running fast, and a Deco M5 system can keep 100-plus devices connected at once.
One Network, One Name
With Deco M5, you can walk from room to room with your smartphone or tablet and stay connected on a single Wi-Fi network.
A MORE SECURE WIFI SYSTEM
Deco M5 protects your personal data and every connected device from online threats like viruses and malware. The system also makes it easy to customize WiFi access for guests and family.
Specifications
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Operating temperature (T-T) | 0 - 40 �C |
| Storage temperature (T-T) | -40 - 70 �C |
| Reset button | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Product type | Mesh system |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Static IP | Yes |
| Dynamic IP | Yes |
| Guest access | Yes |
| Dynamic DNS (DDNS) | Yes |
| WLAN data transfer rate (max) | 1267 Mbit/s |
| Features | |
| DHCP client | Yes |
| DHCP server | Yes |
| Processor cores | 4 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| Parental control | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Built-in processor | Yes |
| Parental control features | Content filter, Custom profiles, Time controls, Time rewards, Weekly/monthly reports |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.2 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Certificates | |
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 �C |
| Storage temperature (T-T) | -40 - 70 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 120 mm |
| Height | 38 mm |
| Package width | 247 mm |
| Package depth | 241 mm |
| Package height | 101 mm |
| Package weight | 950 g |
| Packaging content | |
| AC adapter included | Yes |
| Ethernet cable | Yes |
| Number of products included | 2 pc(s) |
| Number of units included | 2 pc(s) |
| Packaging data | |
| Package width | 247 mm |
| Package depth | 241 mm |
| Package height | 101 mm |
| Package weight | 950 g |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85171800 |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
