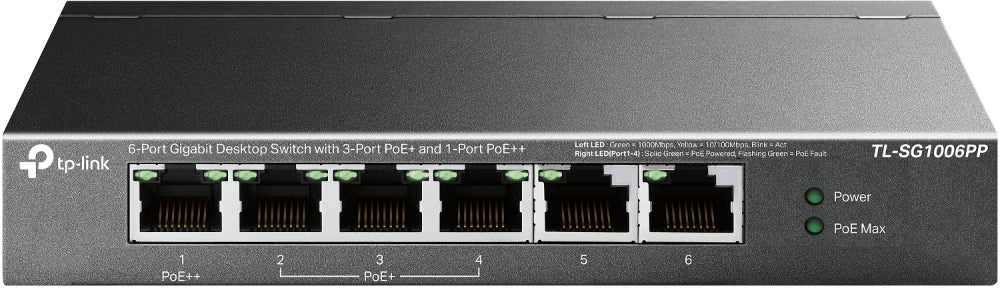

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
Product overview & specifications
6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
TL-SG1006PP is an unmanaged switch with 6 Gigabit ports that requires no configuration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE
802.3af/at/bt compliant Powered Devices (PDs) at port 1 and IEEE 802.3af/at compliant Powered
Devices (PDs) at port 2-4. In this situation, the electrical power is transmitted along with data in one
single cable allowing you to expand your network to where there are no power lines or outlets, where
you wish to fix devices such as APs, IP Cameras or IP Phones, etc
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 4000 entries |
| Switching capacity | 12 Gbit/s |
| Store-and-forward | Yes |
| Forwarding rate | 8.928 Mpps |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Product colour | Grey |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 71.46 W |
| Power supply included | Yes |
| Power consumption (typical) | 4.75 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 �C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 �C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 16.2 BTU/h |
| Weight & dimensions | |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Technical details | |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
