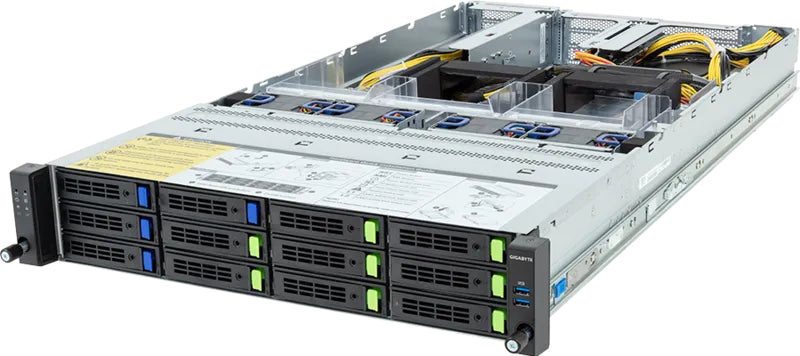

GIGABYTE R283-ZF0-AAL1 - rev 3.x LGA 6096 Rack (2U) Black, Steel
Product overview & specifications
AMD EPYC 9005/9004 Server Processors - 2U DP 4 x PCIe Gen5 GPUs
New AMD EPYC™ Family of Processors - Same Great SP5 Platform
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
The SP5 socket has reached its pinnacle form with 5th Generation AMD EPYC™ processors. The same successful platform that was shared by AMD EPYC™ 9004 & 8004 series processors is now the same one for AMD EPYC™ 9005 series processors. With up to 192 cores, increased frequencies and cache, this top tier performance platform targets general purpose, cloud native, and technical computing. Building on the advantages of the EPYC™ 9004 series, the new EPYC™ 9005 series adopts the 3nm process with AMD “Zen5” and “Zen5c” core architecture, excelling in both energy efficiency and cost optimization. GIGABYTE has already prepared for this new processor with new servers and updates to existing products for 4th Gen AMD EPYC™ processors.
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Processor | |
| Built-in processor | No |
| Processor socket | LGA 6096 |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9004 |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| LED indicators | HDD, LAN, Status |
| Product colour | Black, Steel |
| Chassis type | Rack (2U) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of DIMM slots | 24 |
| Memory channels | Dodeca-channel |
| Storage | |
| Number of storage drives supported | 14 |
| Number of 2.5" bays | 12 |
| Supported storage drive interfaces | Serial ATA, Serial Attached SCSI (SAS) |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Mini DisplayPorts quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 3 |
| Features | |
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
| Technical details | |
| Packaging content | 1 x R283-ZF0-AAL12 x CPU heatsinks1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 150mm)1 x GPU power cable (16-pin, 250mm)1 x GPU power cable (16-pin, 450mm)1 x GPU power cable (16-pin, 550mm)1 x 2-Section Rail kit |
| Number of storage drives supported | 14 |
| Number of 2.5" bays | 12 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (2U) |
| Backplanes support | Yes |
| Colour | |
| Product colour | Black, Steel |
| Indication | |
| LED indicators | HDD, LAN, Status |
| Power | |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 16 A |
| Number of main power supplies | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 2700 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Weight & dimensions | |
| Width | 438 mm |
| Weight | 31.7 kg |
| Height | 87.5 mm |
| Depth | 815 mm |
| Package weight | 36 kg |
| Package width | 1082 mm |
| Package depth | 685 mm |
| Package height | 314 mm |
| Packaging data | |
| Packaging content | 1 x R283-ZF0-AAL12 x CPU heatsinks1 x Mini-DP to D-Sub cable1 x GPU power cable (16-pin, 150mm)1 x GPU power cable (16-pin, 250mm)1 x GPU power cable (16-pin, 450mm)1 x GPU power cable (16-pin, 550mm)1 x 2-Section Rail kit |
| Package weight | 36 kg |
| Package width | 1082 mm |
| Package depth | 685 mm |
| Package height | 314 mm |
