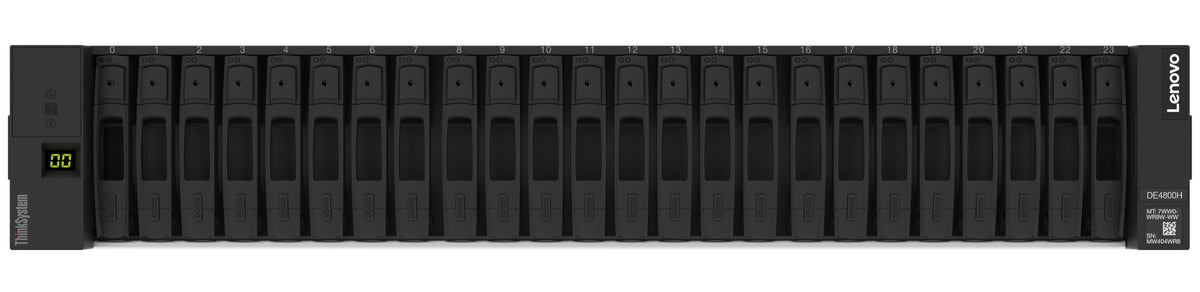

Lenovo ThinkSystem DE4800H 2U24 SFF disk array Rack (2U) Black
Product overview & specifications
(128GB Cache) HICless Hybrid Flash Array 2U24 SFF
Lenovo ThinkSystem DE4800H and DE4800F are a scalable, hybrid and all flash mid-range storage system that is designed to provide high performance, simplicity, capacity, security, and high availability for medium to large businesses. The DE4800H and DE4800F deliver enterprise-class storage management capabilities in a performance-optimized system with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| RAID levels | 0, 1, 5, 6, 10 |
| Data transfer rate | 12 Gbit/s |
| Supported storage drive interfaces | SAS |
| Storage drive sizes supported | 2.5" |
| Ports & interfaces | |
| RJ-45 ports quantity | 1 |
| Serial interface type | RJ-45, USB C |
| Host ports | 12 |
| Technical details | |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Data transfer rate | 12 Gbit/s |
| Design | |
| Built-in display | Yes |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Performance | |
| Device class | Small & Medium Business |
| Maximum number of controllers supported | 2 |
| Cache size (max) | 128 GB |
| Maximum number of hosts supported | 512 |
| Hard drive | |
| RAID levels | 0, 1, 5, 6, 10 |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| AC input voltage | 100 - 240 V |
| Redundant power supply (RPS) support | Yes |
| Hot-swap PSU | Yes |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Weight | 25.1 kg |
| Height | 85 mm |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
