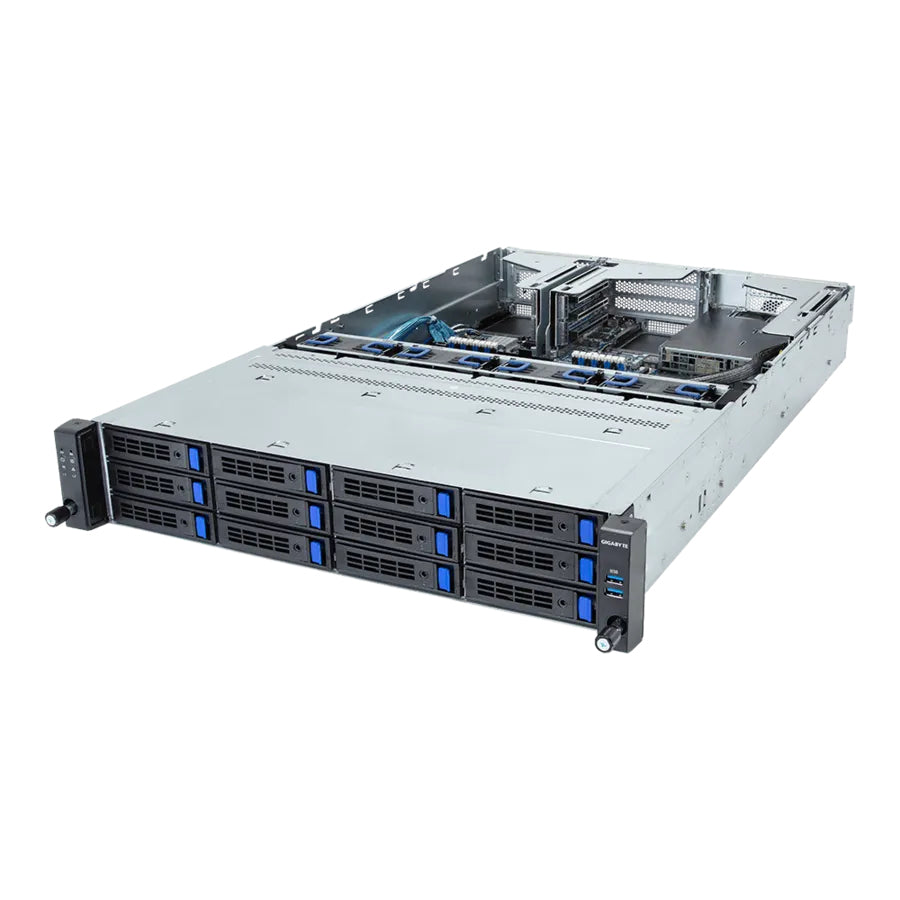

GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)
GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

BrandGigabyte
SKU / Part number6NR263Z32DR000AAC1
Need a bulk quote or product advice?
Speak to our team about your requirements.
Contact sales →
Product overview & specifications
LGA 4677, C741, Xeon, DIMM x 16
Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

High CPU Performance
The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.

Energy Efficiency
Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.

Optimal Price
GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.

Ease of Administration
GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.

Continuous Operation
Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.
Hard drive
Hot-swap HDD bays Yes
Software
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Processor
Built-in processor No
Processor socket LGA 4677 (Socket E)
Processor family Intel® Xeon®
Motherboard chipset Intel C741
Processor manufacturer Intel
Design
80 PLUS certification 80 PLUS Platinum
Reset button Yes
On/off switch Yes
Number of fans 4 fan(s)
Fan diameter 8 cm
LED indicators HDD, LAN, Power, System
Chassis type Rack (2U)
Cooling type Active
Memory
Supported RDIMM clock speeds 2933,3200 MHz
Supported memory types DDR4-SDRAM
Supported DIMM module capacities 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Number of DIMM slots 16
Maximum UDIMM memory 128 GB
Maximum RDIMM memory 128 GB
Memory channels Octa-channel
Storage
Number of storage drives supported 12
Number of 3.5" bays 12
Number of 2.5" bays 12
Hot-swap HDD bays Yes
Storage drive sizes supported 2.5,3.5"
Performance
Trusted Platform Module (TPM) Yes
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Backplanes support Yes
Graphics
On-board graphics card model Aspeed AST2500
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 2
Expansion slots
PCI Express x8 slots 4
PCI Express x16 slots 5
Number of M.2 (M) slots 1
Features
Trusted Platform Module (TPM) Yes
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Backplanes support Yes
Harmonized System (HS) code 84714100
Technical details
Packaging content 1 x R262-ZA1 1 x CPU heatsink 1 x Rail kit
Number of storage drives supported 12
Number of 3.5" bays 12
Number of 2.5" bays 12
Reset button Yes
On/off switch Yes
Number of fans 4 fan(s)
Fan diameter 8 cm
Trusted Platform Module (TPM) Yes
Chassis type Rack (2U)
Backplanes support Yes
Harmonized System (HS) code 84714100
Indication
LED indicators HDD, LAN, Power, System
Logistics data
Harmonized System (HS) code 84714100
Power
AC input voltage 100 - 240 V
Input current 12 - 7 A
DC output current (+12 V) 80.5 A
Number of main power supplies 2
Power supply 1200 W
80 PLUS certification 80 PLUS Platinum
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Safety BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
Operating temperature (T-T) 10 - 35 °C
Operating relative humidity (H-H) 8 - 80%
Weight & dimensions
Width 438 mm
Height 87.5 mm
Depth 730 mm
Packaging data
Packaging content 1 x R262-ZA1 1 x CPU heatsink 1 x Rail kit
Other features
Reset button Yes
GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

£3,897.07
Skip to product information
GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

GIGABYTE R263 Intel C741 LGA 4677 (Socket E) Rack (2U)

£3,897.07
LGA 4677, C741, Xeon, DIMM x 16
Accelerating Artificial Intelligence and Leading Efficiency
Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

High CPU Performance
The best in computational performance relies on a system well designed by our engineers to adequately dissipate heat to achieve peak performance.

Energy Efficiency
Our engineers have baked in features to achieve higher efficiency from power supplies and server fans. Along with Titanium and Platinum offerings.

Optimal Price
GIGABYTE releases multiple product models and configurations to target exactly what users want without paying for extra features that go unused.

Ease of Administration
GIGABYTE servers come with GIGABYTE Management Console for server management. Using a web based browser remotely is key to easing management.

Continuous Operation
Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance.
Hard drive
Hot-swap HDD bays Yes
Software
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Processor
Built-in processor No
Processor socket LGA 4677 (Socket E)
Processor family Intel® Xeon®
Motherboard chipset Intel C741
Processor manufacturer Intel
Design
80 PLUS certification 80 PLUS Platinum
Reset button Yes
On/off switch Yes
Number of fans 4 fan(s)
Fan diameter 8 cm
LED indicators HDD, LAN, Power, System
Chassis type Rack (2U)
Cooling type Active
Memory
Supported RDIMM clock speeds 2933,3200 MHz
Supported memory types DDR4-SDRAM
Supported DIMM module capacities 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Number of DIMM slots 16
Maximum UDIMM memory 128 GB
Maximum RDIMM memory 128 GB
Memory channels Octa-channel
Storage
Number of storage drives supported 12
Number of 3.5" bays 12
Number of 2.5" bays 12
Hot-swap HDD bays Yes
Storage drive sizes supported 2.5,3.5"
Performance
Trusted Platform Module (TPM) Yes
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Backplanes support Yes
Graphics
On-board graphics card model Aspeed AST2500
Network
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
Ethernet LAN (RJ-45) ports 2
Expansion slots
PCI Express x8 slots 4
PCI Express x16 slots 5
Number of M.2 (M) slots 1
Features
Trusted Platform Module (TPM) Yes
Compatible operating systems Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 18.04.5 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.7 Update3 P03 or later VMware ESXi 7.0 Update1 or later Citrix Hypervisor 8.2.0 or later
Backplanes support Yes
Harmonized System (HS) code 84714100
Technical details
Packaging content 1 x R262-ZA1 1 x CPU heatsink 1 x Rail kit
Number of storage drives supported 12
Number of 3.5" bays 12
Number of 2.5" bays 12
Reset button Yes
On/off switch Yes
Number of fans 4 fan(s)
Fan diameter 8 cm
Trusted Platform Module (TPM) Yes
Chassis type Rack (2U)
Backplanes support Yes
Harmonized System (HS) code 84714100
Indication
LED indicators HDD, LAN, Power, System
Logistics data
Harmonized System (HS) code 84714100
Power
AC input voltage 100 - 240 V
Input current 12 - 7 A
DC output current (+12 V) 80.5 A
Number of main power supplies 2
Power supply 1200 W
80 PLUS certification 80 PLUS Platinum
Operational conditions
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Safety BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
Operating temperature (T-T) 10 - 35 °C
Operating relative humidity (H-H) 8 - 80%
Weight & dimensions
Width 438 mm
Height 87.5 mm
Depth 730 mm
Packaging data
Packaging content 1 x R262-ZA1 1 x CPU heatsink 1 x Rail kit
Other features
Reset button Yes
