Lenovo 4XB7A17115 internal solid state drive 3.5" 1.6 TB PCI Express 4.0 3D TLC NVMe
Product overview & specifications

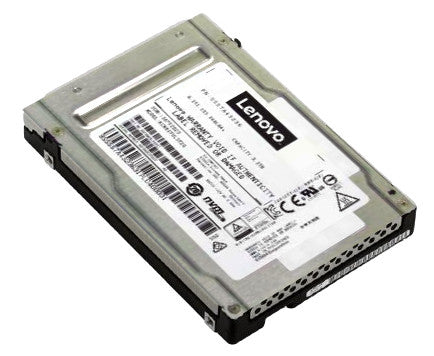

ThinkSystem 3.5" Kioxia CM6-V 1.6TB Mainstream NVMe PCIe4.0 x4 Hot Swap SSD
The ThinkSystem Kioxia CM6-V Mainstream NVMe PCIe 4.0 x4 solid-state drives (SSDs) in capacities up to 6.4 TB are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
| Hard drive | |
|---|---|
| SSD capacity | 1.6 TB |
| Memory type | 3D TLC |
| Data transmission | |
| Random write (4KB) | 215000 IOPS |
| Random read (4KB) | 1300000 IOPS |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Certificates | |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2015) Class B EMC: EN55035 (2017) RoHS 2011/65/EU: EN50581 (2012) Category 3 |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| Hot-swap | Yes |
| SSD capacity | 1.6 TB |
| Memory type | 3D TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 215000 IOPS |
| Random read (4KB) | 1300000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Design | |
| Component for | Server/workstation |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2015) Class B EMC: EN55035 (2017) RoHS 2011/65/EU: EN50581 (2012) Category 3 |
| SSD form factor | 3.5" |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| Hot-swap | Yes |
| SSD capacity | 1.6 TB |
| Memory type | 3D TLC |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 215000 IOPS |
| Random read (4KB) | 1300000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Certification | Underwriters Laboratories: UL60950-1 Canada: CAN/CSA-C22.2 No.60950-1 TUV: EN 60950-1 BSMI (Taiwan): CNS 13438 (CISPR Pub. 22 Class B): D33003 MSIP: KN22, KN24 (CISPR Pub. 22 Class B) Australia/New Zealand: AS/NZS CISPR32:2015 Class B Canada: ICES-003 Issue 6 Class B EMC: EN55022 (2015) Class B EMC: EN55035 (2017) RoHS 2011/65/EU: EN50581 (2012) Category 3 |
| SSD form factor | 3.5" |
| Random latency - read (up to) | 90 µs |
| Random latency - write (up to) | 10 µs |
| Power | |
| Power consumption (max) | 16 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Maximum operating altitude | 5486 m |
| Maximum non-operating altitude | 12192 m |
| Technical details | |
| Interface | PCI Express 4.0 |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Maximum operating altitude | 5486 m |
| Maximum non-operating altitude | 12192 m |
| SSD form factor | 3.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 130 g |
| Height | 15 mm |
| Depth | 100 mm |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Lenovo 4XB7A17115 internal solid state drive 3.5" 1.6 TB PCI Express 4.0 3D TLC NVMe
£2,007.72
