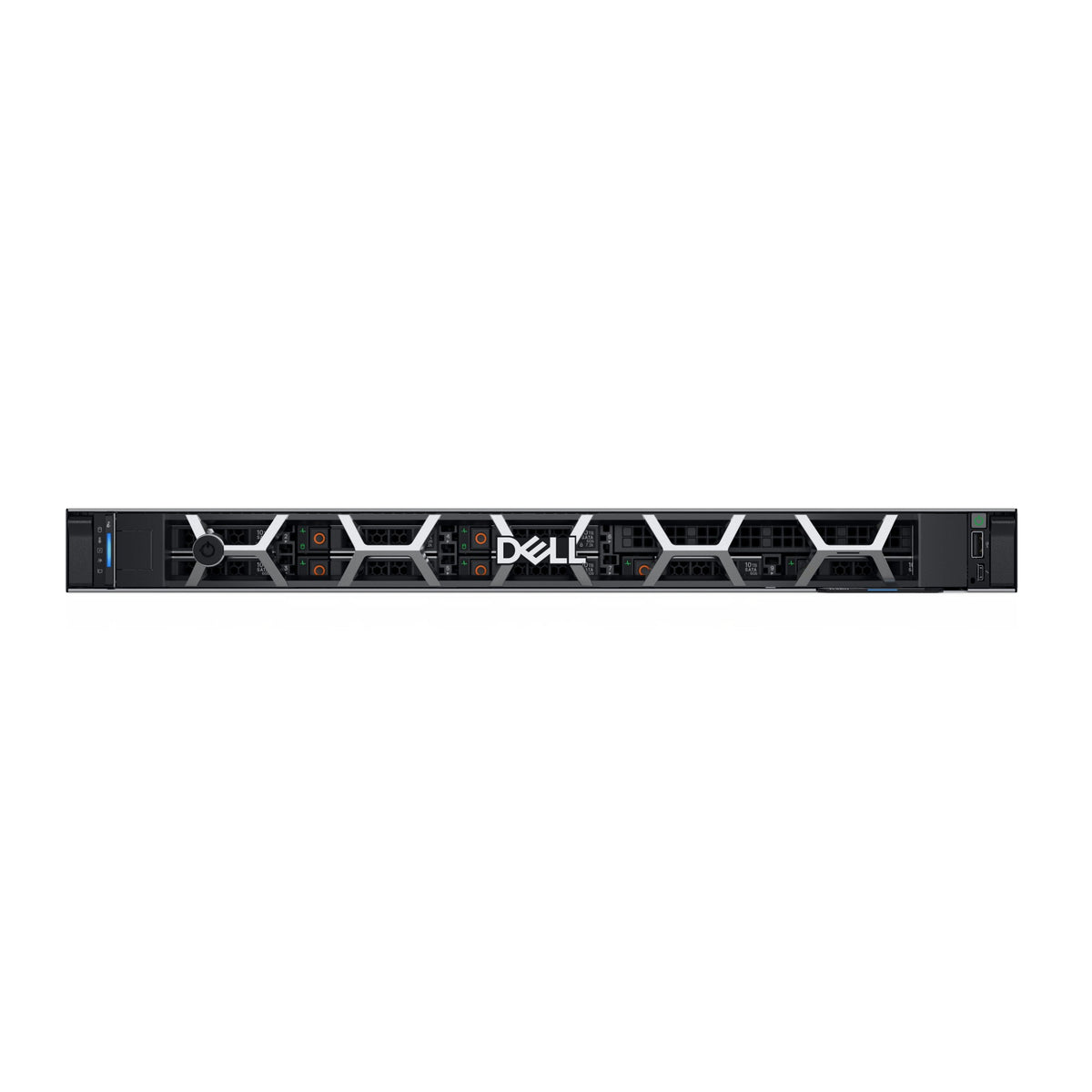

DELL PowerEdge R360 server 480 GB Rack (1U) Intel Xeon E E-2478 2.8 GHz 16 GB DDR5-SDRAM 700 W
Product overview & specifications
Intel Xeon E-2478 (24MB Cache, 2.8GHz), 16GB DDR5-SDRAM, 480GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise, 700W, No OS
Processing performance, GPU support
The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
The 1U, single-socket PowerEdge R360 is an entry-level rack server for customers desiring versatility, affordability, and processing power.
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 80 W |
| Processor threads | 16 |
| Processor cache | 24 MB |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 5.2 GHz |
| Number of processors installed | 1 |
| Processor model | E-2478 |
| Processor cores | 8 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C262 |
| Processor family | Intel Xeon E |
| Performance cores | 8 |
| Memory | |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 1 x 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory data transfer rate | 5600 MT/s |
| Buffered memory type | Unregistered (unbuffered) |
| Storage | |
| Supported RAID controllers | PERC H755 |
| Total storage capacity | 480 GB |
| SSD interface | SATA III |
| SSD capacity | 480 GB |
| RAID support | Yes |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| Internal drive bays | 8 |
| Hot-Plug support | Yes |
| SSD size | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Graphics | |
| Thermal Design Power (TDP) | 80 W |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
| Bezel | Yes |
| Performance | |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Remote administration | iDRAC9, Enterprise 16G |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies supported | 1 |
| Redundant power supply (RPS) support | No |
| Power supply input frequency | 50/60 Hz |
| Power supply | 700 W |
| Power cable length | 2 m |
| Power cable connector 1 | C13 coupler |
| Power cable connector 2 | C14 coupler |
| Power cable current | 10 A |
| Power supply input voltage | 200 - 240 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Management features | |
| Remote administration | iDRAC9, Enterprise 16G |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 1140 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 1140 |
| Total carbon emissions, standard deviation (kg of CO2e) | 943 |
| PAIA version | PAIA 1.4.0, 2024 |
| Carbon emissions, energy usage (kg of CO2e) | 718.2 |
| Carbon emissions, manufacturing (kg of CO2e) | 307.8 |
| Carbon emissions, logistics (kg of CO2e) | 102.6 |
| Carbon emissions, end-of-life (kg of CO2e) | 11.4 |
| Technical details | |
| Rack rails | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Supported storage drives form factor (internal) | 2.5" |
| Weight & dimensions | |
| Width | 482 mm |
| Height | 42.8 mm |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Target workload | Read Intensive (RI) |
