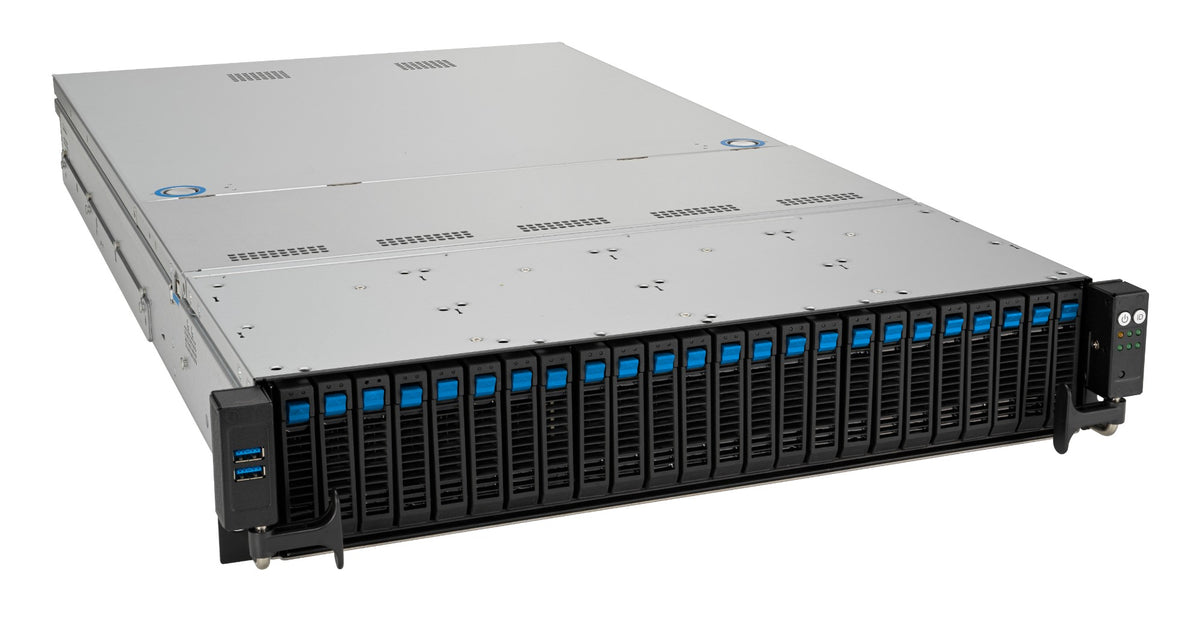

ASUS RS520A-E12-RS24U Socket SP5 Rack (2U) Grey
Product overview & specifications
Server RS520A-E12-RS24U/1G/1.6kW/16NVMe/RH/OCP/GPU
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
AMD EPYC™ 9004 Series Processors
The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.
Faster storage, graphics and networking capabilities
PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
AMD EPYC™ 9004 Series Processors
The 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Processor | |
| Processor socket | Socket SP5 |
| Processor family | AMD EPYC |
| Number of processors supported | 1 |
| Compatible processor series | AMD EPYC 9004 |
| Processor manufacturer | AMD |
| Memory | |
| Supported RDIMM clock speeds | 4400,4800,4000,3600 MHz |
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 128GB, 64GB, 32GB, 16GB, 256GB |
| Number of DIMM slots | 24 |
| Maximum internal memory | 6 TB |
| Storage | |
| Number of storage drives supported | 28 |
| Number of 2.5" bays | 26 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| SSD form factor | M.2 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
| Network | |
| LAN controller | Intel® I350-AM2 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 0 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express slots version | 5.0 |
| Technical details | |
| Number of storage drives supported | 28 |
| Number of 2.5" bays | 26 |
| Reset button | Yes |
| On/off switch | Yes |
| Chassis type | Rack (2U) |
| Compliance certificates | CE, CB, RCM, Federal Communications Commission (FCC) |
| Colour | |
| Product colour | Grey |
| Indication | |
| LED indicators | Yes |
| Design | |
| Reset button | Yes |
| On/off switch | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Chassis type | Rack (2U) |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1600 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 449 mm |
| Weight | 19.1 kg |
| Height | 88.1 mm |
| Depth | 840 mm |
| Package weight | 26.6 kg |
| Packaging data | |
| Package weight | 26.6 kg |
| Other features | |
| Reset button | Yes |
