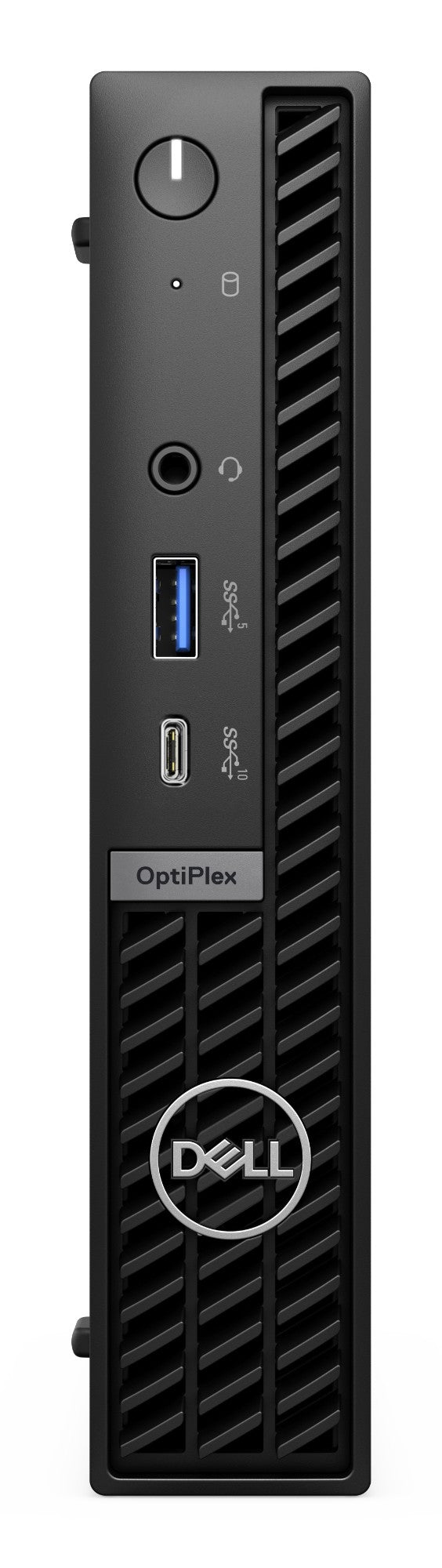

DELL OptiPlex 7020 Intel® Core™ i3 i3-14100T 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black
Product overview & specifications
Intel Core i3-14100T (12MB Cache), 8GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 730, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
All purpose commercial desktop with DDR5 memory, 6 native USB ports including 1 USB-C, 1 native DisplayPort and 1 native HDMI port. Supports single cable set-up through an optional USB-C port.
| Processor | |
|---|---|
| Processor generation | Intel® Core™ i3 (14th gen) |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | i3-14100T |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.4 GHz |
| Processor threads | 8 |
| Processor cores | 4 |
| Processor family | Intel® Core™ i3 |
| Number of processors supported | 1 |
| Performance cores | 4 |
| Efficient cores | 0 |
| Performance-core base frequency | 2.7 GHz |
| Processor base power | 35 W |
| Maximum turbo power | 69 W |
| Performance-core Max Turbo Frequency | 4.4 GHz |
| Memory | |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory channels | Single-channel |
| Storage | |
| Storage media | SSD |
| RAID support | No |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Compatible memory cards | Not supported |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| SSD performance class | 25 |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board GPU manufacturer | Intel |
| Maximum on-board graphics card resolution | 7680 x 4320 pixels |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 1.4b |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| PowerShare | Yes |
| Number of USB ports with PowerShare support | 1 |
| DisplayPort version | 1.4a |
| Number of rear USB ports | 4 |
| Number of rear audio ports | 0 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Technical details | |
| Water cooling system | No |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | MFF |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Motherboard chipset | Intel Q670 |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Climate + |
| Doesn't contain | PVC/BFR |
| Design | |
| Water cooling system | No |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | MFF |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Performance | |
| Audio chip | Realtek ALC3204 |
| Market positioning | Business |
| Number of speakers | 1 |
| Password protection | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Built-in speaker(s) | Yes |
| Motherboard chipset | Intel Q670 |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system language | German, Dutch, English, French, Italian |
| Operating system architecture | 64-bit |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 65 W |
| Operational conditions | |
| Operating altitude | -15.2 - 3048 m |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.26 G |
| Non-operating vibration | 1.37 G |
| Operating shock | 40 G |
| Non-operating shock | 105 G |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Climate + |
| Doesn't contain | PVC/BFR |
| Total carbon footprint (kg of CO2e) | 90.5 |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Packaging content | |
| Display included | No |
| Mouse included on selected markets | Dell Optical Mouse-MS116 - Black |
| Keyboard included on selected markets | Dell Multimedia Keyboard-KB216 - UK (QWERTY) - Black |
| Display | |
| Display included | No |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 90.5 |
| PAIA version | GaBi version 1, 2024 |
| Carbon emissions, energy usage (kg of CO2e) | 28.3265 |
| Carbon emissions, manufacturing (kg of CO2e) | 59.368 |
| Carbon emissions, logistics (kg of CO2e) | 2.353 |
| Carbon emissions, end-of-life (kg of CO2e) | 0.543 |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Built-in speaker(s) | Yes |
| Doesn't contain | PVC/BFR |
