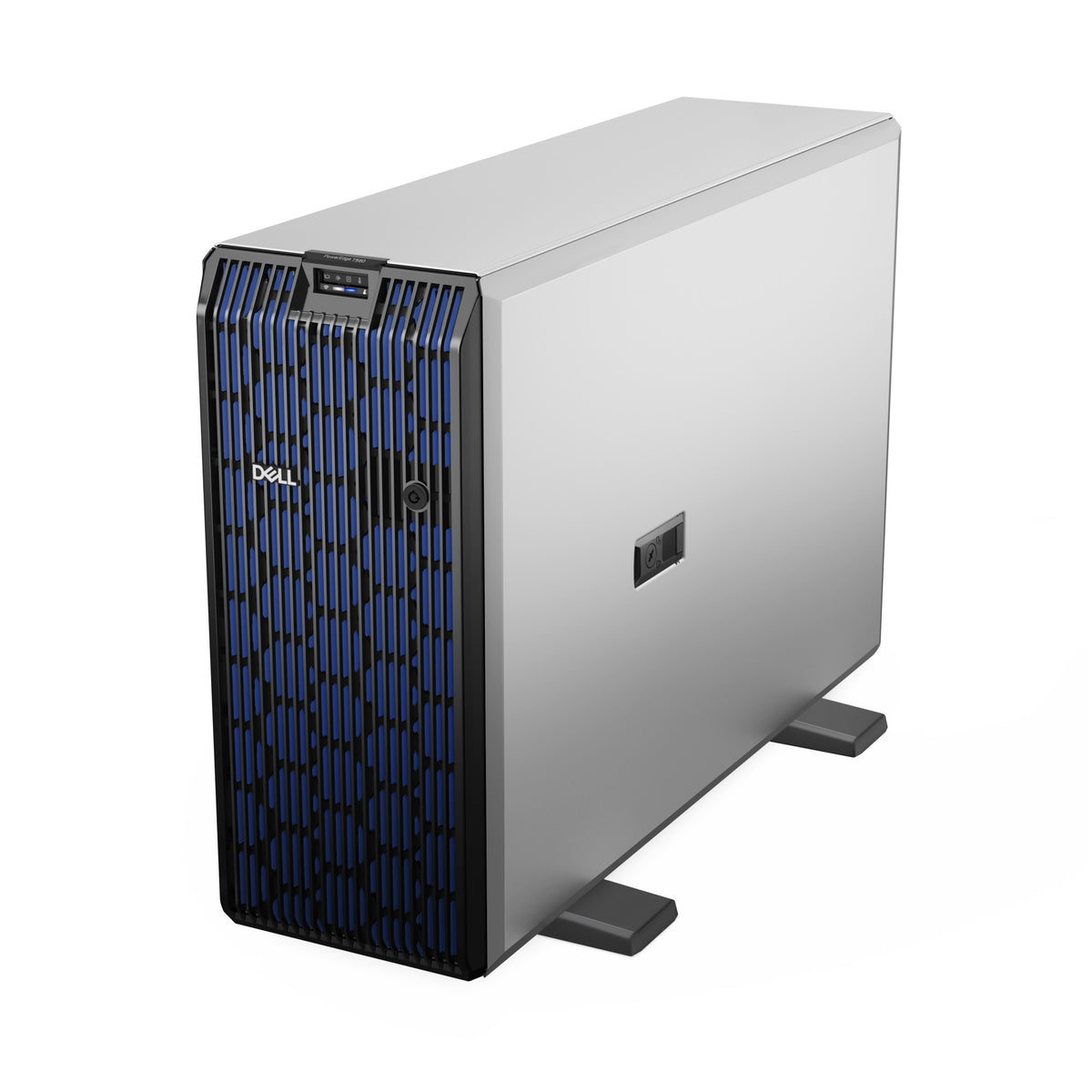

DELL PowerEdge T560 server 480 GB Tower (4.5U) Intel Xeon Silver 4410Y 2 GHz 32 GB DDR5-SDRAM 1100 W
Product overview & specifications
Intel Xeon Silver 4410Y (30MB Cache, 2GHz), 32GB DDR5-SDRAM, 480GB SSD, LAN (Broadcom 5720), PERC H755, iDRAC9, Enterprise 16G, 1100W, No OS
Faster, more powerful and balanced
A purpose-built office-friendly server, maximising next-gen technologies with GPU options to achieve enterprise-level performance.
A purpose-built office-friendly server, maximising next-gen technologies with GPU options to achieve enterprise-level performance.
| Processor | |
|---|---|
| Processor generation | Intel Xeon Scalable 4th Gen |
| Thermal Design Power (TDP) | 150 W |
| Processor threads | 24 |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4000 MHz |
| Processor cache | 30 MB |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.9 GHz |
| Number of processors installed | 1 |
| Processor model | 4410Y |
| System bus rate | 16 GT/s |
| Processor cores | 12 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C741 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory data transfer rate | 5600 MT/s |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Storage | |
| Supported RAID controllers | PERC H755 |
| Number of SSDs supported | 8 |
| Hot-swap | Yes |
| Total storage capacity | 480 GB |
| SSD interface | SATA III |
| SSD capacity | 480 GB |
| RAID support | Yes |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD size | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Supported SSD sizes | 3.5" |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
| Graphics | |
| Thermal Design Power (TDP) | 150 W |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Optical drive type | No |
| Chassis type | Tower (4.5U) |
| Product colour | Black |
| Performance | |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Remote administration | iDRAC9, Enterprise 16G |
| Operating system installed | No |
| Software | |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Operating system installed | No |
| Power | |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | No |
| Power supply | 1100 W |
| Power supply input voltage | 220 V |
| Management features | |
| Remote administration | iDRAC9, Enterprise 16G |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 5989 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 5989 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3189 |
| PAIA version | PAIA 1.3.2, 2022 |
| Carbon emissions, energy usage (kg of CO2e) | 5210.43 |
| Carbon emissions, manufacturing (kg of CO2e) | 419.23 |
| Carbon emissions, logistics (kg of CO2e) | 299.45 |
| Carbon emissions, end-of-life (kg of CO2e) | 59.89 |
| Technical details | |
| Rack rails | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Tower (4.5U) |
| Weight & dimensions | |
| Width | 200 mm |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
