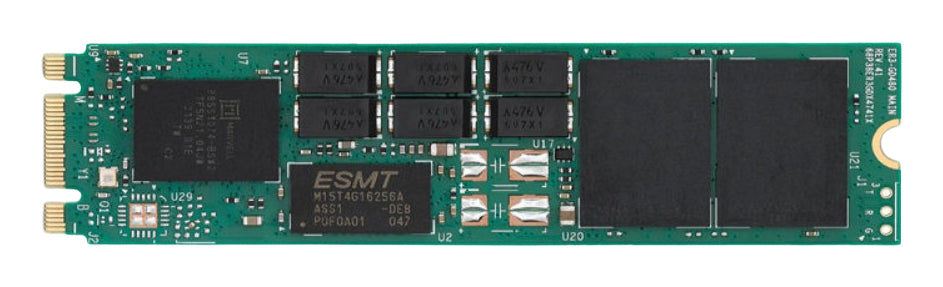

Lenovo 4XB7A90230 internal solid state drive 960 GB M.2 Serial ATA III 3D TLC NAND
Product overview & specifications
ThinkSystem M.2 ER3 960GB Read Intensive SATA 6Gb NHS
The ThinkSystem ER3 Read Intensive SATA 6Gb SSDs, in capacities up to 960GB, are 6Gb SATA drives, available in 2.5-inch and M.2 form factors. They are suitable for general data storage functions and operating system boot purposes on ThinkSystem servers.
This product guide provides essential presales information to understand the ER3 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the ER3 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ER3 SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 960 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 520 MB/s |
| Write speed | 520 MB/s |
| Random write (4KB) | 15000 IOPS |
| Random read (4KB) | 90000 IOPS |
| Data transfer rate | 6 Gbit/s |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | Serial ATA III |
| Component for | Server |
| End-to-End Data Protection | Yes |
| Hot-swap | No |
| SSD capacity | 960 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 520 MB/s |
| Write speed | 520 MB/s |
| Memory type | 3D TLC NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 15000 IOPS |
| Random read (4KB) | 90000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Certification | CE UL BSMI RoHS |
| SSD form factor | M.2 |
| Self-Encrypting Drive (SED) | Yes |
| H/W PLP function | Yes |
| Random latency - read (up to) | 120 µs |
| Random latency - write (up to) | 70 µs |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Drive writes per day (DWPD) | 1 |
| Power | |
| Power consumption (write) | 3.8 W |
| Power consumption (read) | 3.5 W |
| Certificates | |
| Certification | CE UL BSMI RoHS |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server |
| End-to-End Data Protection | Yes |
| Hot-swap | No |
| SSD capacity | 960 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 520 MB/s |
| Write speed | 520 MB/s |
| Memory type | 3D TLC NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 15000 IOPS |
| Random read (4KB) | 90000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Self-Encrypting Drive (SED) | Yes |
| Design | |
| Component for | Server |
| Certification | CE UL BSMI RoHS |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 22 mm |
| Weight | 10 g |
| Height | 3.65 mm |
| Depth | 80 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Technical details | |
| Interface | Serial ATA III |
| Hot-swap | No |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Hardware encryption | Yes |
| SSD form factor | M.2 |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Compliance certificates | RoHS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
Lenovo 4XB7A90230 internal solid state drive 960 GB M.2 Serial ATA III 3D TLC NAND
£365.70
