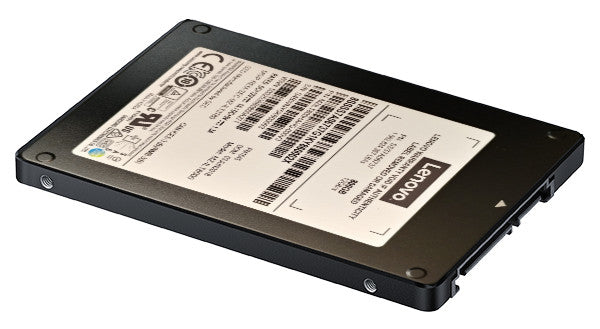

Lenovo 4XB7A90099 internal solid state drive 960 GB 2.5" PCI Express 4.0 NVMe V-NAND
Product overview & specifications
2.5" U.2 PM9A3 960GB Read Intensive NVMe PCIe 4.0 x4 HS
The ThinkSystem PM9A3 Read Intensive NVMe Solid-State Drives (SSDs) are general-purpose yet high-performance family of NVMe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the ThinkSystem PM9A3 Read Intensive NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM9A3 SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the ThinkSystem PM9A3 Read Intensive NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM9A3 SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 960 GB |
| Memory type | V-NAND |
| Security | |
| Security algorithms | TCG Opal 2.0 |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 960 GB |
| Security algorithms | TCG Opal 2.0 |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Certification | c-UL-us CE TUV CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) IC (CANADA) |
| SSD form factor | 2.5" |
| Random latency - read (up to) | 80 µs |
| Random latency - write (up to) | 35 µs |
| Sequential latency - read (up to) | 20 µs |
| Sequential latency - write (up to) | 20 µs |
| Drive writes per day (DWPD) | 1 |
| Power | |
| Power consumption (write) | 6.5 W |
| Power consumption (read) | 7.5 W |
| Certificates | |
| Certification | c-UL-us CE TUV CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) IC (CANADA) |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 960 GB |
| Security algorithms | TCG Opal 2.0 |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Hardware encryption | Yes |
| Design | |
| Component for | Server/workstation |
| Certification | c-UL-us CE TUV CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) IC (CANADA) |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 90 g |
| Height | 7 mm |
| Depth | 100 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Technical details | |
| Interface | PCI Express 4.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
