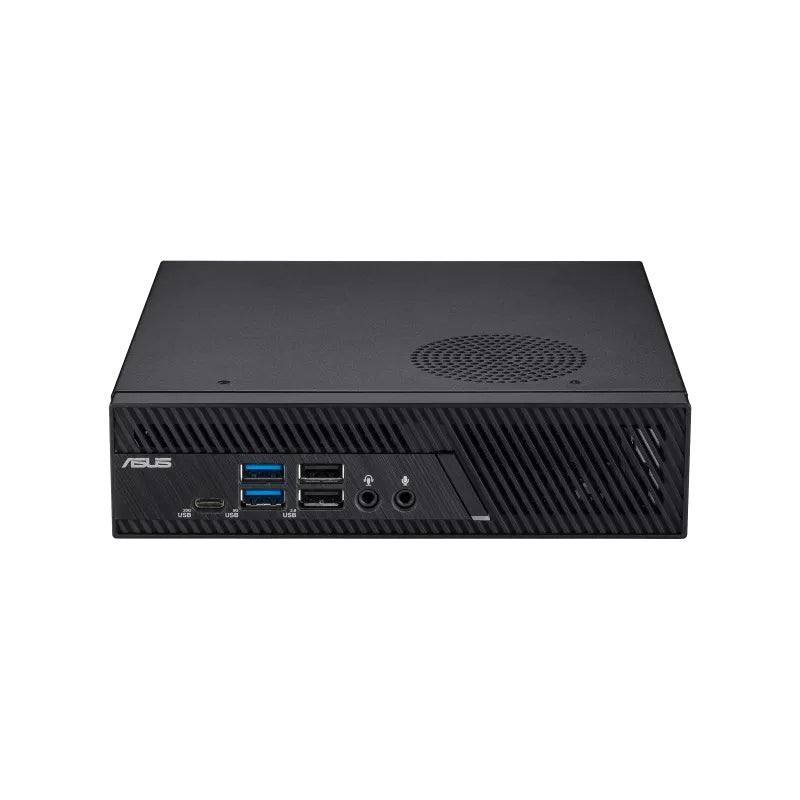

ASUS PB63-B5046AH Intel® Core™ i5 i5-13400 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Product overview & specifications
Intel Core i5-13400 (20MB Cache), 16GB DDR5-SDRAM, 512GB SSD, Intel UHD Graphics 730, LAN, WLAN, Bluetooth, Windows 11 Pro 64-bit
Solid reliability for your business
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
ASUS ExpertCenter PB63 is a durable, versatile and powerful PC suited to a range of business applications, including signage, point-of-sales (POS) systems, kiosks and intelligent vending machines. Powered by the latest Intel® 13th Generation Core™ with Intel® UHD Graphics processors, PB63 delivers desktop-grade performance in a compact size, with supports the next gen memory - DDR5. To cater to diverse demands, PB63 supports a 46 to 65 watt CPU – so it's easy to spec for supreme efficiency or maximum performance. Comprehensive connectivity with eight USB ports and support for up to three 4K UHD displays means PB63 is perfect for almost any business scenario. It's also tested to the latest MIL-STD-810H military standard to ensure it's ready for harsh environments.
| Processor | |
|---|---|
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| Processor cache | 20 MB |
| Processor model | i5-13400 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| Processor threads | 16 |
| Processor cores | 10 |
| Processor family | Intel® Core™ i5 |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor base power | 65 W |
| Maximum turbo power | 154 W |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Memory | |
| Internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel UHD Graphics 730 |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Design | |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Colour name | Black |
| Performance | |
| Market positioning | Business |
| Product type | Mini PC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Width | 175 mm |
| Depth | 175 mm |
| Height | 44.2 mm |
| Package weight | 2.61 kg |
| Weight | 1.18 kg |
| Packaging data | |
| Package width | 360 mm |
| Package depth | 240 mm |
| Package height | 68 mm |
| Package weight | 2.61 kg |
| Packaging content | |
| Display included | No |
| Other features | |
| VESA mounting | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
