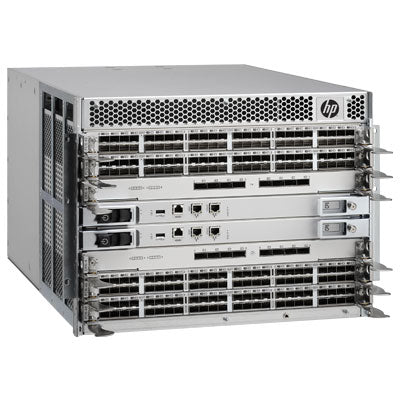

HP StoreFabric SN8000B 4-slot Power Pack+ SAN Director Switch
Product overview & specifications
HP StoreFabric SN8000B 4-slot Power Pack+ SAN Director Switch
The HP StoreFabric SAN Director Switch portfolio is the industry’s most powerful Fibre Channel switching infrastructure, providing reliable, scalable, high-performance foundation for private cloud storage and highly virtualized environments. The SN8000B leverages proven DC SAN Director Switch technology and consists of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 384 16 Gb FC ports and up to 32 QSFP based Inter Chassis Links (ICLs) which are equivalent to 128 16 Gb FC ports. It also provide up to 8.2 Tb/s of total aggregate bandwidth and 512 Gb/s of slot bandwidth.
The DC SAN Director Switch targets traditional data centers and consist of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 512 8 Gb FC ports for 4.1 Tb/s of total aggregate bandwidth and 256 Gb/s of slot bandwidth. In the future, customers may convert a DC chassis in production environments to a SN8000B Director with non-disruptive core blade replacements.
The DC SAN Director Switch targets traditional data centers and consist of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 512 8 Gb FC ports for 4.1 Tb/s of total aggregate bandwidth and 256 Gb/s of slot bandwidth. In the future, customers may convert a DC chassis in production environments to a SN8000B Director with non-disruptive core blade replacements.
| Data transmission | |
|---|---|
| Switching capacity | 4 Tb/s |
| Security | |
| Security algorithms | AES 256-bit; data-at-rest and data-in-flight |
| Protocols | |
| Supported network protocols | Fibre Channel, FCIP, FICON |
| Design | |
| Form factor | 9U |
| Technical details | |
| Form factor | 9U |
| Upgrade type | 8 Gb and 16Gb Fibre Channel blades, 1 GbE and 10 GbE FCIP Extension blades, Encryption Blade, and FCoE Blade, depending on model. |
| Switch models | 8-slot and 4-slot chassis models |
| Port speed rating | 16 Gb/s Fibre Channel |
| Optional software | FICON CUP, MP Blade Performance Extension, ICL License, Enterprise ICL License, and SAN Network Advisor Software are optional for both DC SAN Directors; Power Pack+ Software bundle, Adaptive Networking, Fabric Watch, ISL Trunking, Extended Fabric, Advanced Performance Monitoring, and SAO are optional for only the DC04 SAN Director |
| Multimedia | B-series 16, 8, and 4 Gb/s, XFP Small Form Factor (SFP) |
| Manageability features | B-series SAN Network Advisor; Integration with Storage Essentials |
| Blade types supported | No |
| System requirements | |
| Required software | Power Pack+ is required for the DC SAN Backbone Director and SN8000B 8-slot Director |
| Weight & dimensions | |
| Weight | 68 kg |
| Other features | |
| Dimensions (WxDxH) | 437.4 x 732 x 393.7 mm |
| Upgrade type | 8 Gb and 16Gb Fibre Channel blades, 1 GbE and 10 GbE FCIP Extension blades, Encryption Blade, and FCoE Blade, depending on model. |
| Switch models | 8-slot and 4-slot chassis models |
| Port speed rating | 16 Gb/s Fibre Channel |
| Optional software | FICON CUP, MP Blade Performance Extension, ICL License, Enterprise ICL License, and SAN Network Advisor Software are optional for both DC SAN Directors; Power Pack+ Software bundle, Adaptive Networking, Fabric Watch, ISL Trunking, Extended Fabric, Advanced Performance Monitoring, and SAO are optional for only the DC04 SAN Director |
| Multimedia | B-series 16, 8, and 4 Gb/s, XFP Small Form Factor (SFP) |
| Manageability features | B-series SAN Network Advisor; Integration with Storage Essentials |
| Blade types supported | No |
HP StoreFabric SN8000B 4-slot Power Pack+ SAN Director Switch
£52,524.91
Skip to product information
HP StoreFabric SN8000B 4-slot Power Pack+ SAN Director Switch
£52,524.91
HP StoreFabric SN8000B 4-slot Power Pack+ SAN Director Switch
The HP StoreFabric SAN Director Switch portfolio is the industry’s most powerful Fibre Channel switching infrastructure, providing reliable, scalable, high-performance foundation for private cloud storage and highly virtualized environments. The SN8000B leverages proven DC SAN Director Switch technology and consists of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 384 16 Gb FC ports and up to 32 QSFP based Inter Chassis Links (ICLs) which are equivalent to 128 16 Gb FC ports. It also provide up to 8.2 Tb/s of total aggregate bandwidth and 512 Gb/s of slot bandwidth.
The DC SAN Director Switch targets traditional data centers and consist of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 512 8 Gb FC ports for 4.1 Tb/s of total aggregate bandwidth and 256 Gb/s of slot bandwidth. In the future, customers may convert a DC chassis in production environments to a SN8000B Director with non-disruptive core blade replacements.
The DC SAN Director Switch targets traditional data centers and consist of an 8-slot 14U chassis and a 4-slot 9U chassis. The director provides up to 512 8 Gb FC ports for 4.1 Tb/s of total aggregate bandwidth and 256 Gb/s of slot bandwidth. In the future, customers may convert a DC chassis in production environments to a SN8000B Director with non-disruptive core blade replacements.
| Data transmission | |
|---|---|
| Switching capacity | 4 Tb/s |
| Security | |
| Security algorithms | AES 256-bit; data-at-rest and data-in-flight |
| Protocols | |
| Supported network protocols | Fibre Channel, FCIP, FICON |
| Design | |
| Form factor | 9U |
| Technical details | |
| Form factor | 9U |
| Upgrade type | 8 Gb and 16Gb Fibre Channel blades, 1 GbE and 10 GbE FCIP Extension blades, Encryption Blade, and FCoE Blade, depending on model. |
| Switch models | 8-slot and 4-slot chassis models |
| Port speed rating | 16 Gb/s Fibre Channel |
| Optional software | FICON CUP, MP Blade Performance Extension, ICL License, Enterprise ICL License, and SAN Network Advisor Software are optional for both DC SAN Directors; Power Pack+ Software bundle, Adaptive Networking, Fabric Watch, ISL Trunking, Extended Fabric, Advanced Performance Monitoring, and SAO are optional for only the DC04 SAN Director |
| Multimedia | B-series 16, 8, and 4 Gb/s, XFP Small Form Factor (SFP) |
| Manageability features | B-series SAN Network Advisor; Integration with Storage Essentials |
| Blade types supported | No |
| System requirements | |
| Required software | Power Pack+ is required for the DC SAN Backbone Director and SN8000B 8-slot Director |
| Weight & dimensions | |
| Weight | 68 kg |
| Other features | |
| Dimensions (WxDxH) | 437.4 x 732 x 393.7 mm |
| Upgrade type | 8 Gb and 16Gb Fibre Channel blades, 1 GbE and 10 GbE FCIP Extension blades, Encryption Blade, and FCoE Blade, depending on model. |
| Switch models | 8-slot and 4-slot chassis models |
| Port speed rating | 16 Gb/s Fibre Channel |
| Optional software | FICON CUP, MP Blade Performance Extension, ICL License, Enterprise ICL License, and SAN Network Advisor Software are optional for both DC SAN Directors; Power Pack+ Software bundle, Adaptive Networking, Fabric Watch, ISL Trunking, Extended Fabric, Advanced Performance Monitoring, and SAO are optional for only the DC04 SAN Director |
| Multimedia | B-series 16, 8, and 4 Gb/s, XFP Small Form Factor (SFP) |
| Manageability features | B-series SAN Network Advisor; Integration with Storage Essentials |
| Blade types supported | No |
