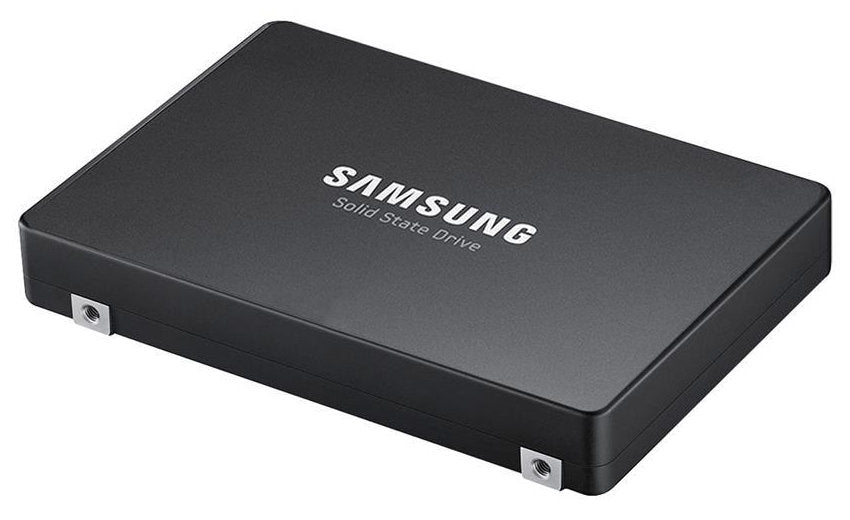

Lenovo 4XB7A82368 internal solid state drive 2.5" 7.68 TB PCI Express 5.0 NVMe V-NAND
Product overview & specifications
ThinkSystem 2.5" U.3 PM1743 7.68TB Read Intensive NVMe PCIe 5.0 x4 HS SSD
The ThinkSystem PM1743 Read Intensive NVMe PCIe 5.0 SSDs, available in capacities up to 15.36TB, are general-purpose yet high-performance NVMe PCIe Gen 5 SSDs. Available in both 2.5-inch and E3.S EDSFF form factors, they are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the PM1743 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the PM1743 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 7.68 TB |
| Memory type | V-NAND |
| Data transmission | |
| Random write (4KB) | 300000 IOPS |
| Random read (4KB) | 2500000 IOPS |
| Write latency | 20 µs |
| Read latency | 60 µs |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Certificates | |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| Performance | |
| Interface | PCI Express 5.0 |
| Component for | Server |
| NVMe | Yes |
| Hot-swap | Yes |
| SSD capacity | 7.68 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 300000 IOPS |
| Random read (4KB) | 2500000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Write latency | 20 µs |
| Read latency | 60 µs |
| Hardware encryption | Yes |
| Design | |
| Component for | Server |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | 2.5" |
| Features | |
| Interface | PCI Express 5.0 |
| Component for | Server |
| NVMe | Yes |
| Hot-swap | Yes |
| SSD capacity | 7.68 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 300000 IOPS |
| Random read (4KB) | 2500000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
| Write latency | 20 µs |
| Read latency | 60 µs |
| Hardware encryption | Yes |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Maximum operating altitude | 3050 m |
| Technical details | |
| Interface | PCI Express 5.0 |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| ECC | Yes |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Maximum operating altitude | 3050 m |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 190 g |
| Height | 15 mm |
| Depth | 100 mm |
| Other features | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
