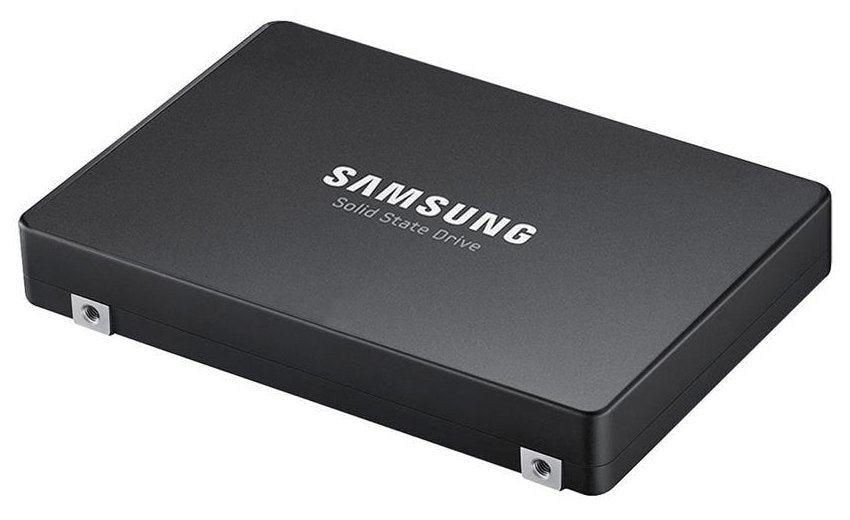

Lenovo 4XB7A81952 internal solid state drive U.3 3.84 TB PCI Express 4.0 V-NAND NVMe
Product overview & specifications
ThinkSystem 2.5" U.3 PM1733a 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD
The ThinkSystem PM1733a Read Intensive NVMe SSDs, available in capacities up to 30.72TB, are general-purpose yet high-performance NVMe PCIe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
| Hard drive | |
|---|---|
| SSD capacity | 3.84 TB |
| Memory type | V-NAND |
| Data transmission | |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Certificates | |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 3.84 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Design | |
| Component for | Server/workstation |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | U.3 |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 3.84 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | U.3 |
| Power | |
| Power consumption (write) | 19 W |
| Power consumption (read) | 17.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Technical details | |
| Interface | PCI Express 4.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| ECC | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| SSD form factor | U.3 |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 190 g |
| Height | 15 mm |
| Depth | 100 mm |
Lenovo 4XB7A81952 internal solid state drive U.3 3.84 TB PCI Express 4.0 V-NAND NVMe
£10,771.84
Skip to product information
Lenovo 4XB7A81952 internal solid state drive U.3 3.84 TB PCI Express 4.0 V-NAND NVMe
£10,771.84
ThinkSystem 2.5" U.3 PM1733a 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD
The ThinkSystem PM1733a Read Intensive NVMe SSDs, available in capacities up to 30.72TB, are general-purpose yet high-performance NVMe PCIe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
| Hard drive | |
|---|---|
| SSD capacity | 3.84 TB |
| Memory type | V-NAND |
| Data transmission | |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Certificates | |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| Performance | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 3.84 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Design | |
| Component for | Server/workstation |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | U.3 |
| Features | |
| Interface | PCI Express 4.0 |
| Component for | Server/workstation |
| NVMe | Yes |
| SSD capacity | 3.84 TB |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Memory type | V-NAND |
| Random write (4KB) | 170000 IOPS |
| Random read (4KB) | 1600000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 25 µs |
| Read latency | 100 µs |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| SSD form factor | U.3 |
| Power | |
| Power consumption (write) | 19 W |
| Power consumption (read) | 17.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Technical details | |
| Interface | PCI Express 4.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| ECC | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| SSD form factor | U.3 |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 190 g |
| Height | 15 mm |
| Depth | 100 mm |
