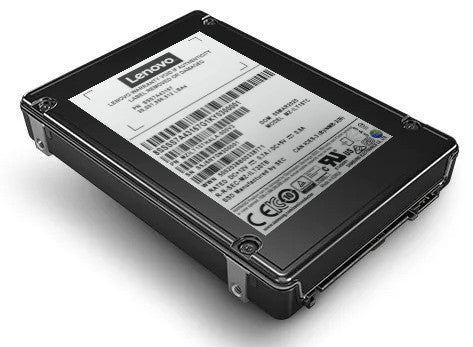

Lenovo 4XB7A80343 internal solid state drive 2.5" 6.4 TB SAS V-NAND TLC
Product overview & specifications
ThinkSystem 2.5" PM1655 6.4TB Mixed Use SAS 24Gb HS SSD
The ThinkSystem PM1655 Mixed Use SAS 24Gb SSDs in capacities of up to 6.4 TB are next-generation high-performance 24Gb SAS self-encrypting SSDs (SEDs) suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the PM1655 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the PM1655 SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 6.4 TB |
| Memory type | V-NAND TLC |
| Data transmission | |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Write latency | 45 µs |
| Read latency | 130 µs |
| Data transfer rate | 24 Gbit/s |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Certificates | |
| Certification | RoHS UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| Performance | |
| Interface | SAS |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 6.4 TB |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND TLC |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 45 µs |
| Read latency | 130 µs |
| Data transfer rate | 24 Gbit/s |
| Compatible products | ThinkSystem |
| Design | |
| Component for | Server/workstation |
| Certification | RoHS UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| SSD form factor | 2.5" |
| Features | |
| Interface | SAS |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 6.4 TB |
| S.M.A.R.T. support | Yes |
| Memory type | V-NAND TLC |
| Random write (4KB) | 195000 IOPS |
| Random read (4KB) | 420000 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 45 µs |
| Read latency | 130 µs |
| Data transfer rate | 24 Gbit/s |
| Certification | RoHS UL TUV FCC IC CB CE Mark C-Tick Mark BSMI (Taiwan) KCC (Korea EMI) VCCI |
| SSD form factor | 2.5" |
| Compatible products | ThinkSystem |
| Power | |
| Power consumption (write) | 14.7 W |
| Power consumption (read) | 11.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
| Technical details | |
| Interface | SAS |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 4572 m |
| SSD form factor | 2.5" |
