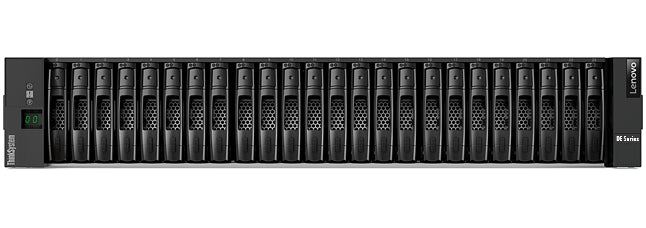

Lenovo 2U24 CHAS disk array 0 TB Rack (2U) Black
Product overview & specifications
ThinkSystem DE4000H - 2U24 8GB controller
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drives installed | No |
| Maximum supported storage capacity | 288 TB |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Ports & interfaces | |
| USB connectivity | Yes |
| RJ-45 ports quantity | 3 |
| Serial interface type | RJ-45 |
| Technical details | |
| Device class | Large Enterprise Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Design | |
| Built-in display | Yes |
| Device class | Large Enterprise Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Certification | United States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A |
| Cooling | Yes |
| Performance | |
| Device class | Large Enterprise Business |
| Hard drive | |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Weight | 24.6 kg |
| Height | 85 mm |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 50 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 8 - 90% |
