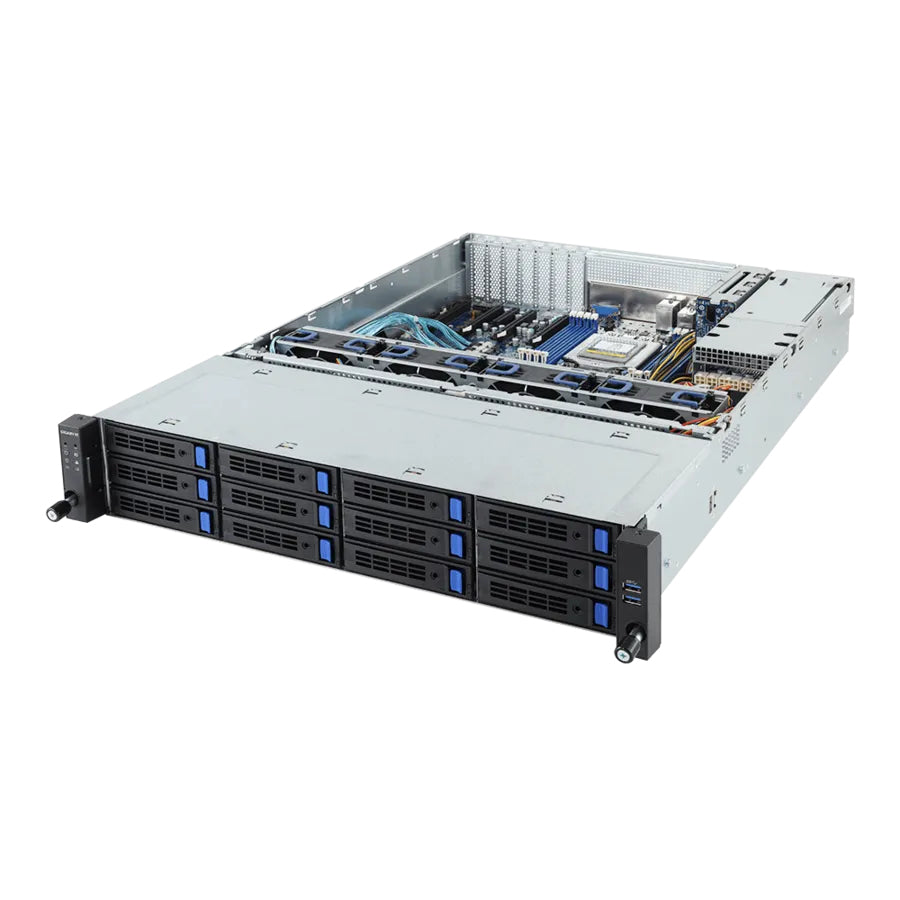

GIGABYTE R271-Z00 Socket SP3 Rack (2U)
Product overview & specifications
MZ01-CE1, EPYC, SoC
AMD EPYC™ Processors
The New x86 Option
AMD’s return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE’s extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
Memory
I/O
Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
- Memory Optimization
- Memory speed of up to 2666MHz (at 1DPC)
- Total memory capacity of 2TB supported
- PCIe Lanes
- Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform
- Cores / Power
- CPU power is managed at the core level, meaning that power is allocated only for specific workload needs
- Security
- Proprietary AMD security on chip
The New x86 Option
AMD’s return to the CPU segment delivers a whole new value proposition to the x86 world. Built on GIGABYTE’s extensive design expertise across a range of chipset platforms, this AMD EPYC™ platform is already receiving acclaim for its high specification:
Memory
I/O
Network connectivity
This platform is intended as an alternative for builders in the x86 space and packs a real punch in flexibility and expansion options.
- Memory Optimization
- Memory speed of up to 2666MHz (at 1DPC)
- Total memory capacity of 2TB supported
- PCIe Lanes
- Up to 128 lanes in both 1P and 2P offerings providing the highest expandability options of any x86 platform
- Cores / Power
- CPU power is managed at the core level, meaning that power is allocated only for specific workload needs
- Security
- Proprietary AMD security on chip
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Software | |
| Compatible operating systems | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | HDD, LAN, Power, System |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Memory | |
| Supported RDIMM clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 8GB, 16GB, 32GB, 64GB, 128GB |
| Number of DIMM slots | 16 |
| Maximum RDIMM memory | 64 GB |
| Storage | |
| Number of storage drives supported | 12 |
| Number of 3.5" bays | 12 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 3.5" |
| Supported storage drive types | HDD & SSD |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Compatible operating systems | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later |
| Backplanes support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Expansion slots | |
| PCI Express x8 slots | 2 |
| PCI Express x16 slots | 5 |
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Compatible operating systems | Windows Server 2012 R2 with Update Windows Server 2016 Red Hat Enterprise Linux 7.4 (x64) or later Red Hat Enterprise Linux 8.0 (x64) or later SUSE Linux Enterprise Server 11.4 (x64) or later SUSE Linux Enterprise Server 12.3 (x64) or later SUSE Linux Enterprise Server 15 (x64) or later Ubuntu 16.04 LTS (x64) or later Ubuntu 18.04 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 Update1 or later VMware ESXi 6.7 or later VMware ESXi 7.0 or later Citrix Xenserver 7.1.0 CU2 or later Citrix Xenserver 7.4.0 or later Citrix Hypervisor 8.0.0 or later |
| Backplanes support | Yes |
| Harmonized System (HS) code | 84714100 |
| Technical details | |
| Packaging content | 1 x R271-Z31 system 1 x CPU heatsink 1 x Quick Installation Guide 1 x Rail kit |
| Number of storage drives supported | 12 |
| Number of 3.5" bays | 12 |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| Fan diameter | 8 cm |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (2U) |
| Backplanes support | Yes |
| Harmonized System (HS) code | 84714100 |
| Indication | |
| LED indicators | HDD, LAN, Power, System |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 10.4 A |
| Number of main power supplies | 2 |
| Power supply | 800 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Thermal Design Power (TDP) | 800 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Weight & dimensions | |
| Width | 430 mm |
| Weight | 21 kg |
| Height | 87 mm |
| Depth | 710 mm |
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
| Packaging data | |
| Packaging content | 1 x R271-Z31 system 1 x CPU heatsink 1 x Quick Installation Guide 1 x Rail kit |
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
| Other features | |
| Reset button | Yes |
