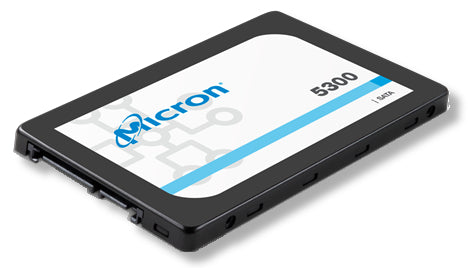

Lenovo 4XB7A38181 internal solid state drive 240 GB 2.5" Serial ATA III 3D TLC NAND
Product overview & specifications
ThinkSystem 7mm 5300 240GB Entry SATA 6Gb SSD
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| Hard drive | |
|---|---|
| SSD capacity | 240 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Random write (4KB) | 40000 IOPS |
| Random read (4KB) | 67000 IOPS |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 3000000 h |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 40000 IOPS |
| Random read (4KB) | 67000 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3 W |
| Power consumption (read) | 2.5 W |
| Certificates | |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 40000 IOPS |
| Random read (4KB) | 67000 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS FCC: CFR Title 47, Part 15 Class B UL: UL-60950-1, 2nd Edition BSMI (Taiwan): approval to CNS 13438 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KCC RRL (Korea): approval to KN 32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2002/96/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): CISPR32 Class B: Canadian ICES-003:2016 |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Technical details | |
| Interface | Serial ATA III |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Non-operating vibration | 3.13 G |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
