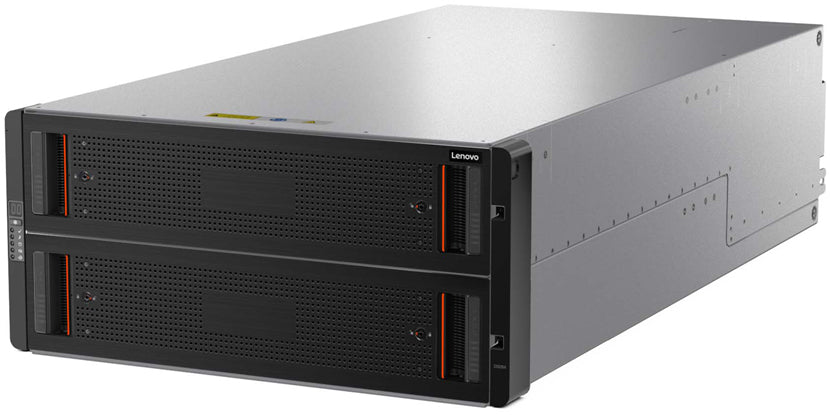

Lenovo D3284 disk array Rack (5U) Black
Product overview & specifications
D3284, 3x 12Gbps SAS x4, RAID, 5U
The Lenovo Storage D3284 High Density Expansion Enclosure offers 12 Gbps SAS direct-attached storage expansion capabilities that are designed to provide density, speed, scalability, security, and high availability for medium to large businesses. The D3284 delivers enterprise-class storage technology in a cost-effective dense solution with flexible drive configurations of up to 84 drives in 5U and RAID or JBOD (non-RAID) host connectivity.
This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions.
This product guide provides essential pre-sales information to understand the structure of the D3284 drive enclosure offering, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the D3284 and consider its use in IT solutions.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| Supported storage drive types | HDD |
| Storage drive interface | Serial ATA, Serial Attached SCSI (SAS) |
| Storage drive size | 2.5" |
| Storage drives installed | No |
| RAID levels | JBOD |
| Data transfer rate | 12 Gbit/s |
| Ports & interfaces | |
| USB connectivity | No |
| SAS host port | Yes |
| Number of SAS host ports | 3 |
| Technical details | |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (5U) |
| Data transfer rate | 12 Gbit/s |
| Harmonized System (HS) code | 84717020 |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (5U) |
| Hard drive | |
| RAID levels | JBOD |
| Power | |
| Power supply unit (PSU) capacity | 2214 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 250 V |
| Redundant power supply (RPS) support | Yes |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 933 mm |
| Weight | 131 kg |
| Height | 221 mm |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 100% |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
