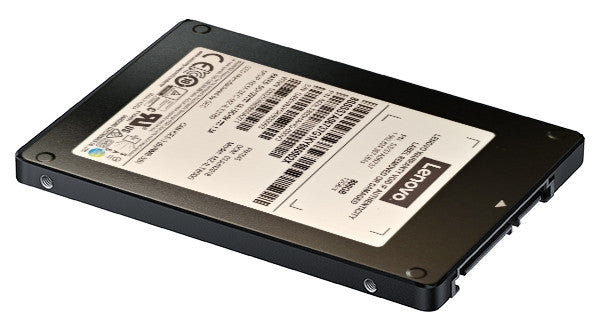

Lenovo 4XB7A17063 internal solid state drive 1.6 TB 2.5" SAS
Product overview & specifications
ThinkSystem 2.5" PM1645a 1.6TB Mainstream SAS 12Gb Hot Swap SSD
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
This product guide provides essential presales information to understand the Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
The PM1645a SSDs are the follow-on to the PM1645 SSDs and offer improved random write performance.
This product guide provides essential presales information to understand the Mainstream 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The ThinkSystem PM1645a Mainstream SAS 12Gb solid-state drives (SSDs) in capacities of up to 3.2 TB are next-generation high-performance SSDs suitable for a wide range of applications of running on ThinkSystem servers.
The PM1645a SSDs are the follow-on to the PM1645 SSDs and offer improved random write performance.
| Hard drive | |
|---|---|
| SSD capacity | 1.6 TB |
| Data transmission | |
| Read speed | 1000 MB/s |
| Write speed | 1000 MB/s |
| Random write (4KB) | 130 IOPS |
| Random read (4KB) | 230 IOPS |
| Write latency | 45 µs |
| Read latency | 120 µs |
| Data transfer rate | 12 Gbit/s |
| Endurance | |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Features | |
| Interface | SAS |
| Component for | Server/workstation |
| NVMe | No |
| End-to-End Data Protection | Yes |
| Hot-swap | Yes |
| SSD capacity | 1.6 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 1000 MB/s |
| Write speed | 1000 MB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 130 IOPS |
| Random read (4KB) | 230 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 45 µs |
| Read latency | 120 µs |
| Data transfer rate | 12 Gbit/s |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 9 W |
| Power consumption (read) | 9 W |
| Performance | |
| Interface | SAS |
| Component for | Server/workstation |
| NVMe | No |
| End-to-End Data Protection | Yes |
| Hot-swap | Yes |
| SSD capacity | 1.6 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 1000 MB/s |
| Write speed | 1000 MB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Random write (4KB) | 130 IOPS |
| Random read (4KB) | 230 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 45 µs |
| Read latency | 120 µs |
| Data transfer rate | 12 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Weight | 140 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Interface | SAS |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SSD form factor | 2.5" |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
