Lenovo 4XB7A38185 internal solid state drive 2.5" 960 GB Serial ATA III QLC 3D NAND
Product overview & specifications

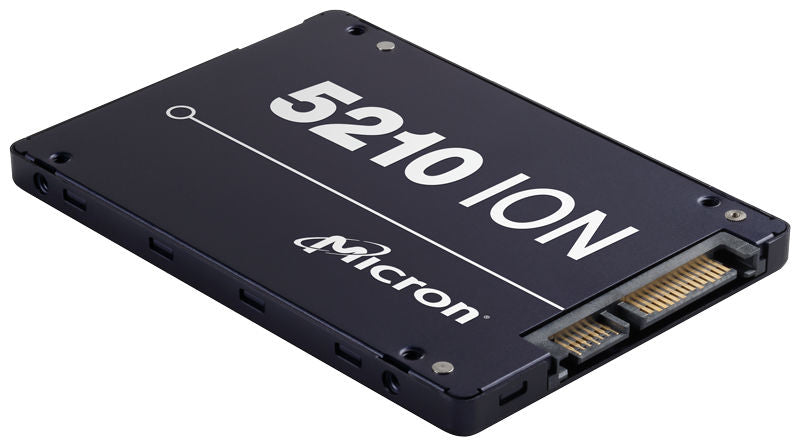

ThinkSystem 2.5" 5210 960GB Entry SATA 6Gb Hot Swap QLC SSD
The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
| Hard drive | |
|---|---|
| SSD capacity | 960 GB |
| Memory type | QLC 3D NAND |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 960 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Memory type | QLC 3D NAND |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 960 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Memory type | QLC 3D NAND |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3.9 W |
| Power consumption (read) | 2.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Interface | Serial ATA III |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
Lenovo 4XB7A38185 internal solid state drive 2.5" 960 GB Serial ATA III QLC 3D NAND
£957.78
Skip to product information
Lenovo 4XB7A38185 internal solid state drive 2.5" 960 GB Serial ATA III QLC 3D NAND
£957.78
ThinkSystem 2.5" 5210 960GB Entry SATA 6Gb Hot Swap QLC SSD
The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
| Hard drive | |
|---|---|
| SSD capacity | 960 GB |
| Memory type | QLC 3D NAND |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 960 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Memory type | QLC 3D NAND |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 2.5" |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| SSD capacity | 960 GB |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| Memory type | QLC 3D NAND |
| Random write (4KB) | 1.2 IOPS |
| Random read (4KB) | 40 IOPS |
| Mean time between failures (MTBF) | 2000000 h |
| Write latency | 530 µs |
| Read latency | 310 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3.9 W |
| Power consumption (read) | 2.8 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Interface | Serial ATA III |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 70 g |
| Height | 7 mm |
| Depth | 100 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
