Lenovo 4XB7A17081 internal solid state drive 240 GB 3.5" Serial ATA III 3D TLC NAND
Product overview & specifications

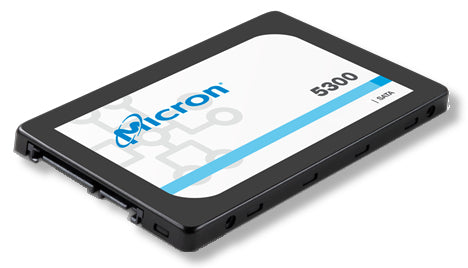

ThinkSystem 3.5" 5300 240GB Entry SATA 6Gb Hot Swap SSD
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the 5300 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 240 GB |
| Memory type | 3D TLC NAND |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Random write (4KB) | 40 IOPS |
| Random read (4KB) | 67 IOPS |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 3000000 h |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 40 IOPS |
| Random read (4KB) | 67 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 3.5" |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (write) | 3 W |
| Power consumption (read) | 2.5 W |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| NVMe | No |
| Hot-swap | Yes |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| Read speed | 540 MB/s |
| Write speed | 310 MB/s |
| Memory type | 3D TLC NAND |
| Random write (4KB) | 40 IOPS |
| Random read (4KB) | 67 IOPS |
| Mean time between failures (MTBF) | 3000000 h |
| Write latency | 300 µs |
| Read latency | 175 µs |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| SSD form factor | 3.5" |
| Weight & dimensions | |
| Weight | 70 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Vibration resistance | 3.13 G |
| Technical details | |
| Interface | Serial ATA III |
| Hot-swap | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Hardware encryption | Yes |
| SSD form factor | 3.5" |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
