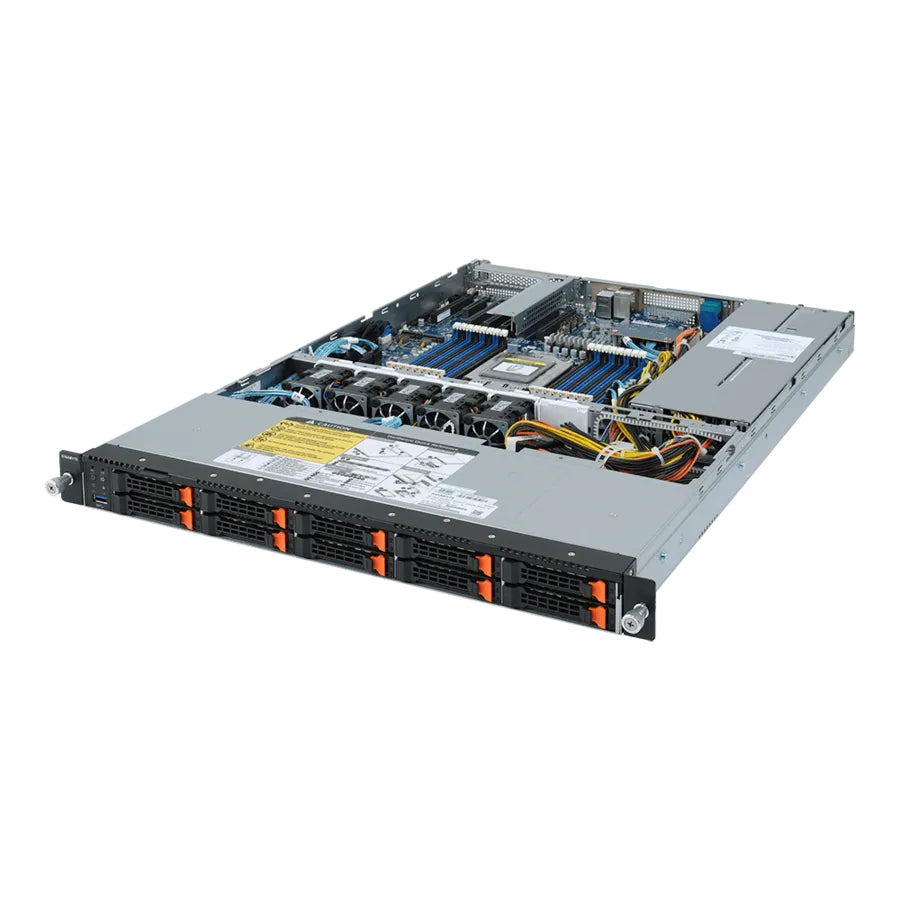

GIGABYTE R152-Z32 AMD SoC Socket SP3 Rack (1U)
Product overview & specifications
MZ32-AR0, LGA 4094, SoC
AMD EPYC™ 7003 Series Processors
GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.
- Up to 64 Cores
- 8 Channels of DDR4-3200
- Up to 4TB Memory Capacity
- 128 lanes PCIe 4.0
- 2-way SMT & Turbo Boost
- 4,6,8-channel Memory Interleave
- Synchronized Fabric and Memory Clock Speeds
- Secure Memory Encryption
- Secure Encrypted Virtualization
GIGABYTE servers and AMD EPYC 7003 Series Processors deliver the highest possible I/O throughput to pave the way for fast communication between CPU and accelerator in HPC and data analytics.
- Up to 64 Cores
- 8 Channels of DDR4-3200
- Up to 4TB Memory Capacity
- 128 lanes PCIe 4.0
- 2-way SMT & Turbo Boost
- 4,6,8-channel Memory Interleave
- Synchronized Fabric and Memory Clock Speeds
- Secure Memory Encryption
- Secure Encrypted Virtualization
| Hard drive | |
|---|---|
| Hot-swap HDD bays | Yes |
| Software | |
| Compatible operating systems | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later Citrix Hypervisor 8.1.0 or later |
| Processor | |
| Built-in processor | No |
| Processor socket | Socket SP3 |
| Processor family | AMD |
| Motherboard chipset | AMD SoC |
| Processor manufacturer | AMD |
| Memory | |
| Supported RDIMM clock speeds | 2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 16 |
| Maximum UDIMM memory | 128 GB |
| Maximum RDIMM memory | 128 GB |
| Memory channels | Octa-channel |
| Storage | |
| Number of storage drives supported | 10 |
| Number of 2.5" bays | 10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Compatible operating systems | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later Citrix Hypervisor 8.1.0 or later |
| Backplanes support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Features | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Compatible operating systems | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later Ubuntu 20.04 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later VMware ESXi 7.0 or later Citrix Hypervisor 8.1.0 or later |
| Backplanes support | Yes |
| Harmonized System (HS) code | 84714100 |
| Technical details | |
| Packaging content | 1 x R162-ZA1 1 x CPU heatsink 1 x Rail kit |
| Number of storage drives supported | 10 |
| Number of 2.5" bays | 10 |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 8 fan(s) |
| Fan diameter | 8 cm |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (1U) |
| Backplanes support | Yes |
| Harmonized System (HS) code | 84714100 |
| Indication | |
| LED indicators | HDD, LAN, Power, Status |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Design | |
| Reset button | Yes |
| On/off switch | Yes |
| Number of fans | 8 fan(s) |
| Fan diameter | 8 cm |
| LED indicators | HDD, LAN, Power, Status |
| Chassis type | Rack (1U) |
| Power | |
| AC input voltage | 100 - 240 V |
| Input current | 10 - 4 A |
| DC output current (+12 V) | 66 A |
| Number of main power supplies | 2 |
| Power supply | 800 W |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Weight & dimensions | |
| Width | 438 mm |
| Height | 43.5 mm |
| Depth | 730 mm |
| Packaging data | |
| Packaging content | 1 x R162-ZA1 1 x CPU heatsink 1 x Rail kit |
| Other features | |
| Reset button | Yes |
