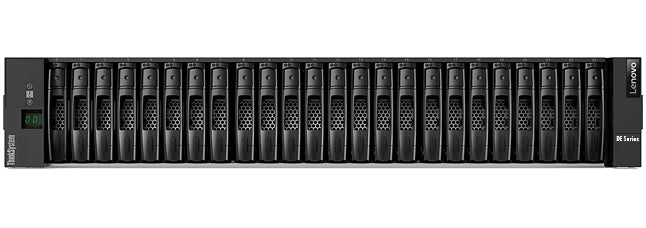

Lenovo ThinkSystem DE4000H disk array 0 TB Rack (2U) Black
Product overview & specifications
DE4000H SAS Hybrid Flash Array SFF, 4x 16 Gb FC base ports no SFPs, 8x 12 Gb SAS HIC ports
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Hot-swap drive bays | Yes |
| Installed storage drive type | HDD+SSD |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drives installed | No |
| Maximum supported storage capacity | 288 TB |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Supported storage drive interfaces | SAS |
| Ports & interfaces | |
| USB connectivity | Yes |
| RJ-45 ports quantity | 3 |
| Serial interface type | RJ-45 |
| Technical details | |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Harmonized System (HS) code | 84717020 |
| Design | |
| Built-in display | Yes |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Cooling | Yes |
| Performance | |
| Device class | Small & Medium Business |
| Hard drive | |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Weight | 24.6 kg |
| Height | 85 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
Lenovo ThinkSystem DE4000H disk array 0 TB Rack (2U) Black
£7,946.03
Skip to product information
Lenovo ThinkSystem DE4000H disk array 0 TB Rack (2U) Black
£7,946.03
DE4000H SAS Hybrid Flash Array SFF, 4x 16 Gb FC base ports no SFPs, 8x 12 Gb SAS HIC ports
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
| Storage | |
|---|---|
| Total installed storage capacity | 0 TB |
| Hot-swap drive bays | Yes |
| Installed storage drive type | HDD+SSD |
| Number of storage drives installed | 0 |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 24 |
| Storage drives installed | No |
| Maximum supported storage capacity | 288 TB |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Supported storage drive interfaces | SAS |
| Ports & interfaces | |
| USB connectivity | Yes |
| RJ-45 ports quantity | 3 |
| Serial interface type | RJ-45 |
| Technical details | |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Harmonized System (HS) code | 84717020 |
| Design | |
| Built-in display | Yes |
| Device class | Small & Medium Business |
| Product colour | Black |
| LED indicators | Yes |
| Chassis type | Rack (2U) |
| Cooling | Yes |
| Performance | |
| Device class | Small & Medium Business |
| Hard drive | |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 553 mm |
| Weight | 24.6 kg |
| Height | 85 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717020 |
