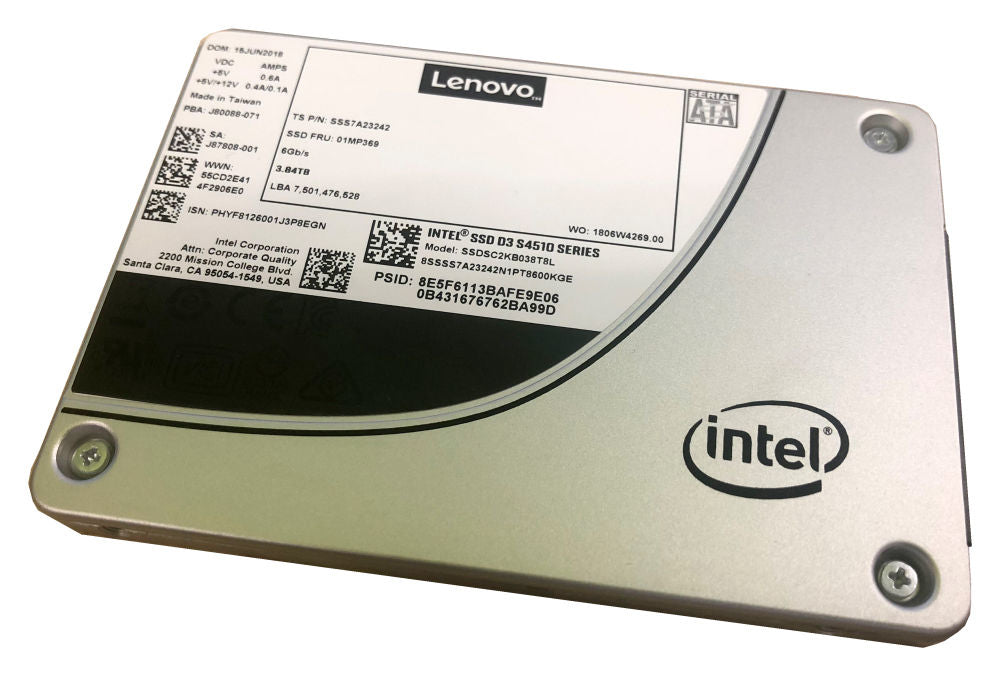

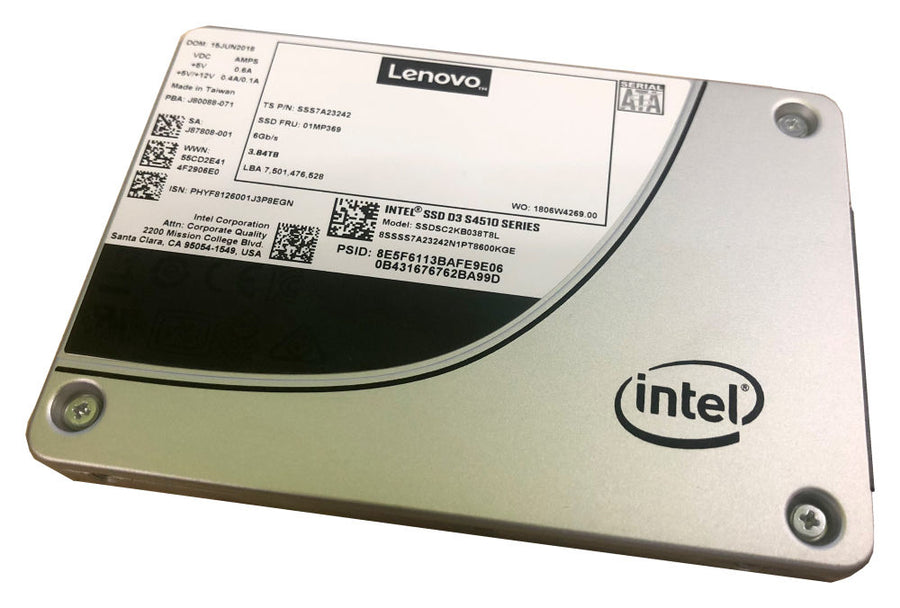

Lenovo 4XB7A10247 internal solid state drive 2.5" 240 GB Serial ATA III
Product overview & specifications
ThinkSystem Intel S4510 Entry SATA 6Gb
The Intel S4510 Entry SATA solid-state drives (SSDs) for Lenovo servers use 64-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4510 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4510 SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the S4510 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4510 SSDs and consider their use in IT solutions.
| Hard drive | |
|---|---|
| SSD capacity | 240 GB |
| Data transmission | |
| Read speed | 560 MB/s |
| Write speed | 290 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security | |
| Security algorithms | 256-bit AES |
| Endurance | |
| Mean time between failures (MTBF) | 2000000 h |
| Certificates | |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Performance | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Maximum write (4KB) | 17000 IOPS |
| Maximum read (4KB) | 85000 IOPS |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| Read speed | 560 MB/s |
| Write speed | 290 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | Server/workstation |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| SSD form factor | 2.5" |
| Features | |
| Interface | Serial ATA III |
| Component for | Server/workstation |
| Maximum write (4KB) | 17000 IOPS |
| Maximum read (4KB) | 85000 IOPS |
| SSD capacity | 240 GB |
| Security algorithms | 256-bit AES |
| Read speed | 560 MB/s |
| Write speed | 290 MB/s |
| Mean time between failures (MTBF) | 2000000 h |
| Data transfer rate | 6 Gbit/s |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Maximum operating altitude | 3050 m |
| Technical details | |
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Maximum operating altitude | 3050 m |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 63 g |
| Height | 7 mm |
| Depth | 100 mm |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
